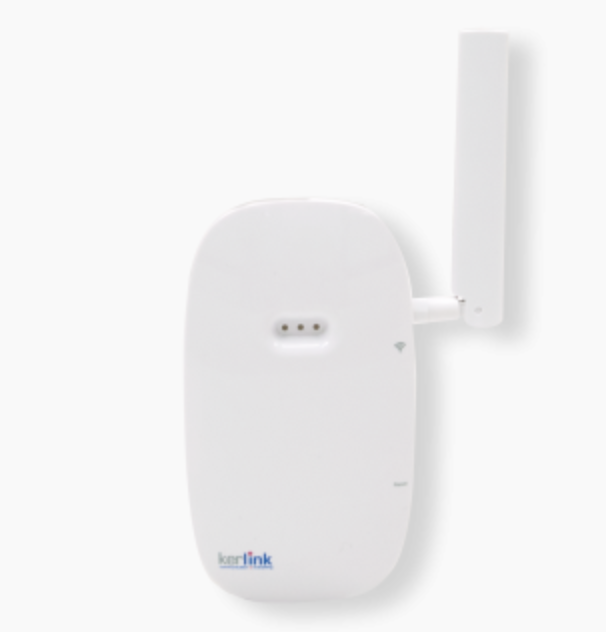

LoRaWAN Indoor Gateway for Ethernet and 4G
The “Wirnet™ iFemtoCell-evolution” is the ideal gateway to support you in your smart city, smart building or every smart project that requests dedicated indoor coverage and/or network densification, providing both a unique superior coverage and operational excellence with an internal 3G/4G backhaul.
Indoor LoRa® Gateway,
• Ingress protection (IP30),
• Supported unlicensed bands: 863-874.4MHz (EMEA, India), 902-928MHz (North America), 915-928MHz (APAC, Latin America),
• Supported LoRaWAN® regional parameters: EU863-870, IN865-867, RU864-870, US902-928, AU915-928, AS923, KR920-923,
• 8ch RX (125 kHz, multi Spreading Factor) + 1ch RX (250KHz or 500kHz, mono Spreading Factor) + 1ch RX (FSK) to get 10ch RX + 1ch TX,
• Backhaul connectivity: 4G Worldwide module with 3G/2G fall-back and Ethernet (RJ45)
• Powered by:
- AC/DC power supply (90-264VAC/12VDC) with 5.5x2.5mm plug
- 5V DC supply via USB-C
- Uninterrupted power supply with 5h or 24h autonomy (accessories)
| Benefits | |
|---|---|
| In/Outdoor usage | Indoor |
| Features | |
| Gateway functionality | Cellular / 4G connectivity, Ethernet |
| User interaction | LED |
| Connectivity data | |
| Frequency | EU (868 MHz) or US (915 MHz) |
| Protocols / Connectivity | LoRaWAN |
| Power supply | |
| Powered by | External power source, AC/DC power supply (90-264VAC/12VDC) with 5.5x2.5mm plug, 5V DC supply via USB-C |
| Mechanical data | |
| Width (mm) | 90 |
| Depth (mm) | 160 |
| Height (mm) | 35 |
| Internal | |
| Yggio decoder | IoT-gateway connector |
| Fortnox Article number | GW-10_005 |
| Vendor article number | 3, Kerlink - PDTIOT-IFE03 |
| URL | https://www.kerlink.com/product/wirnet-ifemtocell-evolution |
| Manufacturer | Kerlink |
