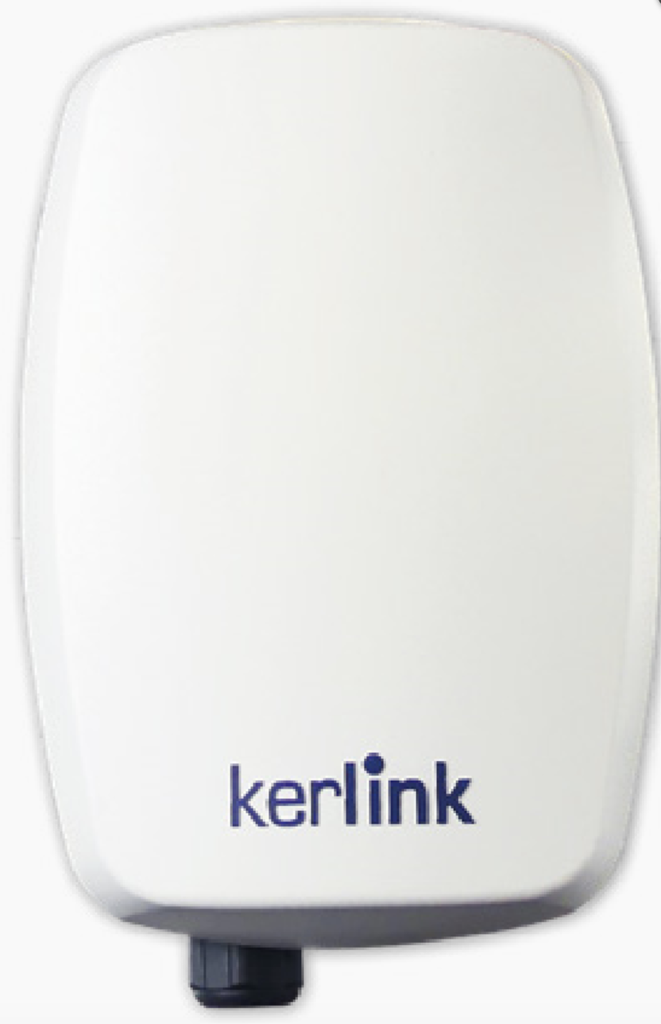

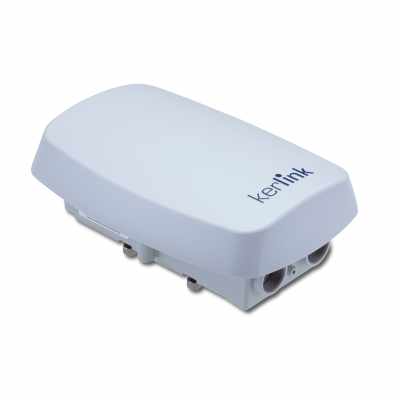

The Wirnet iStation” is the ideal gateway to support your smart city, smart industry or any other smart project, combining simplicity of installation, unique superior coverage and operational excellence.
- Outdoor LoRa® Gateway,
- Carrier grade casing (IP67) for industrial use,
- Supported unlicensed bands : 863-874.4MHz (EMEA, India), 902-928MHz (North America), 915-928MHz (APAC, Latin America),
- Supported LoRaWAN® regional parameters: EU863-870, IN865-867, RU864-870, US902-928, AU915-928, AS923, KR920-923,
- 8ch RX (125 kHz, multi Spreading Factor) + 1ch RX (250KHz or 500kHz, mono Spreading Factor) + 1ch RX (FSK) to get 10ch RX + 1ch TX,
- Backhaul connectivity: 4G Worldwide module with 3G/2G fallback and Ethernet (RJ45),
- Powered by: PoE (Injector, switch, …), both Mode A and Mode B (802.3af specifications), +/- 48VDC through RJ45 (isolated power),
- POE not included
- Highly secured device relying on a hardware secure core.
- Internal antenna. Fully integrated and internal antennas GPS, 4G, LoRa (peak gain=2,6dBi.
| Benefits | |
|---|---|
| In/Outdoor usage | Indoor & Outdoor |
| Features | |
| Gateway functionality | Ethernet, Cellular / 4G connectivity |

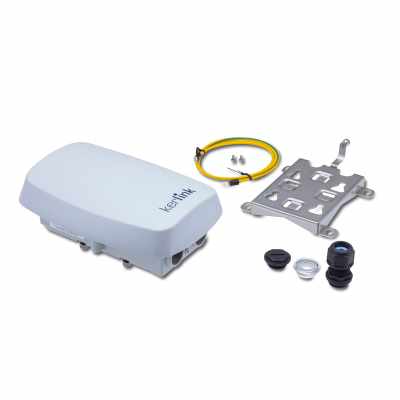

| Accessories | PoE injector, external antenna |
| Connectivity data | |
| Frequency | EU (868 MHz) or US (915 MHz) |
| Protocols / Connectivity | LoRaWAN |
| Power supply | |
| Powered by | External power source, PoE (Injector, switch, ...), both Mode A and Mode B (802.3af specifications), +/- 48VDC through RJ45 (isolated power) |
| Mechanical data | |
| Width (mm) | 165 |
| Depth (mm) | 100 |
| Height (mm) | 265 |
| Internal | |
| Yggio decoder | IoT-gateway connector |
| Fortnox Article number | GW-10_008 |
| Vendor article number | 40, Kerlink-PDTIOT-ISS04 |
| Manufacturer | Kerlink |
