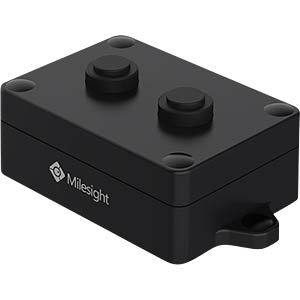

EM310-UDL is a LoRaWAN® ultrasonic distance/level sensor mainly used for detection of waste bin and other container’s level. With a compact size and wide measure range, EM310-UDL can be installed to any types of waste bins or containers to monitor solid or liquid level. Besides, EM310-UDL equips with 3-axis accelerometer to detect the status of container cover. It is equipped with NFC (Near Field Communication) and can easily be configured by a smartphone.
Sensor data are transmitted in real-time using standard LoRaWAN® protocol. LoRaWAN® enables encrypted radio transmissions over long distance while consuming very little power. The user can obtain sensor data and view the trend of data change through Milesight IoT Cloud or through the user's own Network Server.
Features
- 3 to 450 cm wide measuring range with short bind zone Support temperature compensation for high accuracy Up to 15 km communication range
- Easy configuration via NFC
- Standard LoRaWAN® support
- Low power consumption with 7000mAh replaceable battery
| Application | |
|---|---|
| Application | Waste management, Distance measurements, Filling level |
| Features | |
| Sensor | Ultrasonic, Accelerometer |
| User interaction | LED |
| Connectivity data | |
| Protocols / Connectivity | LoRaWAN, NFC |
| Power supply | |
| Powered by | Battery, 2 x 3500 mAh ER17505 Li-SOCI2 batteru |
| Mechanical data | |
| Width (mm) | 111 |
| Depth (mm) | 40 |
| Height (mm) | 62 |
| More information | |
| Manual URL | https://resource.milesight-iot.com/milesight/document/em310-udl-datasheet-en.pdf |
| Internal | |
| Yggio decoder | milesight-em310 |
| Fortnox Article number | SEN-30_064 |
| URL | https://www.milesight-iot.com/lorawan/sensor/em310-udl/ |
| Manufacturer | Milesight |
