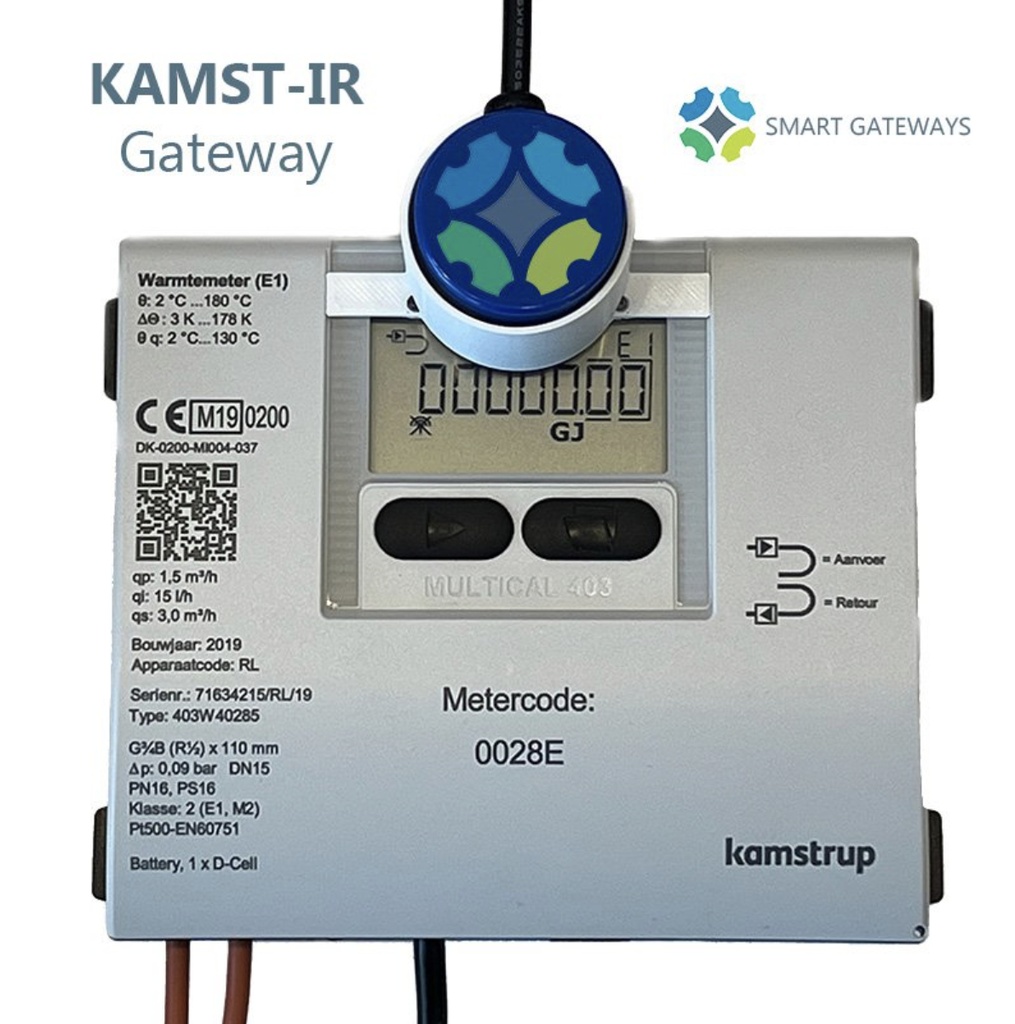

The Kamst-IR Gateway for Kamstrup heat meters and water meters for district heating, underfloor heating and heat pumps enables energy consumption. This gateway can be easily connected to a Kamstrup meter for district heating.
Supported heat meters:
- Kamstrup Multical 302
- Kamstrup Multical 303
- Kamstrup Multical 402
- Kamstrup Multical 403
- Kamstrup Multical 601
- Kamstrup Multical 602
- Kamstrup Multical 603
- Kamstrup Multical 801
- Kamstrup Multical 803
- Kamstrup Multical 6M2
- Kamstrup Multical SVM S6
- Kamstrup Multical 66-C(DE)
- Kamstrup Multical 401
- Kamstrup Multical SVM 10EL
- Kamstrup Maxical III
- Kamstrup Multical III
- Kamstrup SVM 9EVL
Kamstrup Multical meters transmit a great deal of information, including:
- Total heat energy (GJ)
- Power (kWh)
- Input temperature (°C)
- Output temperature (°C)
- Temperature difference between input and output (°C)
- Total flow volume (m³)
- fFow per hour (L/hour)
- Total minimum values per month and year for temperature, flow, power
- And more (see mqtt topics)
Supported water meters:
- flowIQ 2101
- flowIQ 2102
- flowIQ 2200
- flowIQ 3100
- flowIQ 3200
- flowIQ 4200
- Multical 21
- Multical 41
- Multical 61
- Multical 62
- MAG8000
*currently don’t provide a mount for water meters, only for warmth meters
| Application | |
|---|---|
| Application | energy measurement |
| Connectivity data | |
| Protocols / Connectivity | WiFi, MQTT |
| Mechanical data | |
| Width (mm) | 70 |
| Height (mm) | 25 |
| Internal | |
| Manufacturer | Smartgateway |
| Length (mm) | 30 |
