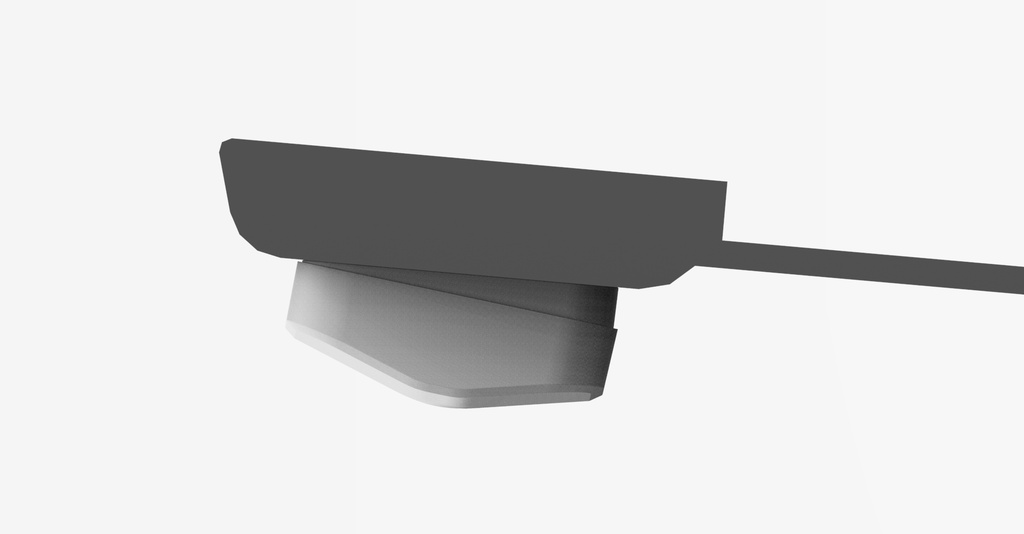

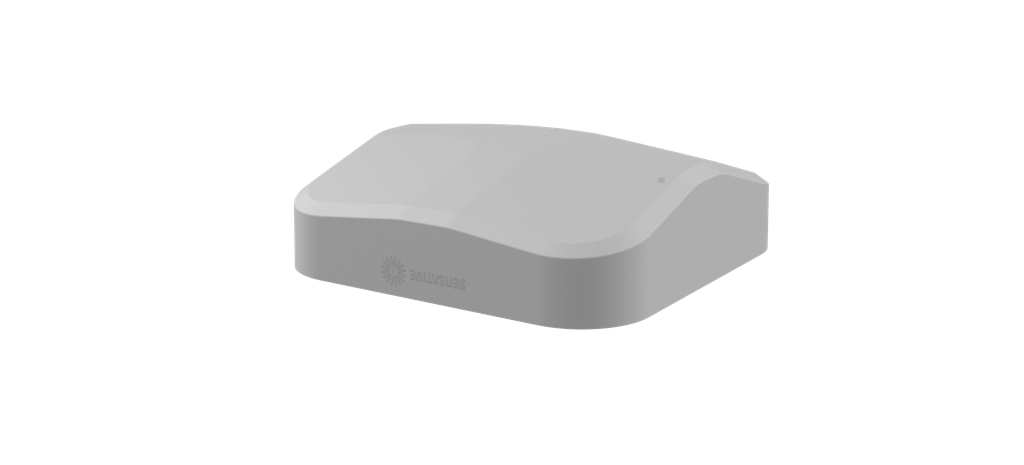

Sensative Prism Seat Occupancy Sensor for LoRaWAN

Prism Seat Occupancy Sensor LoRaWAN

Prism is a radar-based sensor designed for presence and seat occupancy detection in railway and indoor environments. It enables reliable, real-time occupancy data without the use of cameras, supporting improved capacity utilization and passenger insights.

Using radar technology with a narrow detection pattern, Prism provides focused and accurate detection within a defined area, minimizing interference from surrounding zones.

With battery-powered operation and low-power communication, it is designed for long-term deployments with minimal maintenance.

Typical use cases

Seat occupancy detection in trains and public transport

Monitoring of office pods and meeting rooms

Indoor presence detection in commercial spaces

Utilization tracking of shared environments

Key advantages

Focused detection with narrow radar lobe (±10°)

Detection range up to 6.8 m

Reliable operation independent of lighting conditions

Privacy-preserving sensing without cameras

Available with single or dual sensor configuration

Battery-powered for flexible installation

Advanced capabilities

Prism uses radar-based sensing to detect presence and occupancy with high precision. The narrow detection lobe enables accurate monitoring of specific seats or areas while reducing false detections.

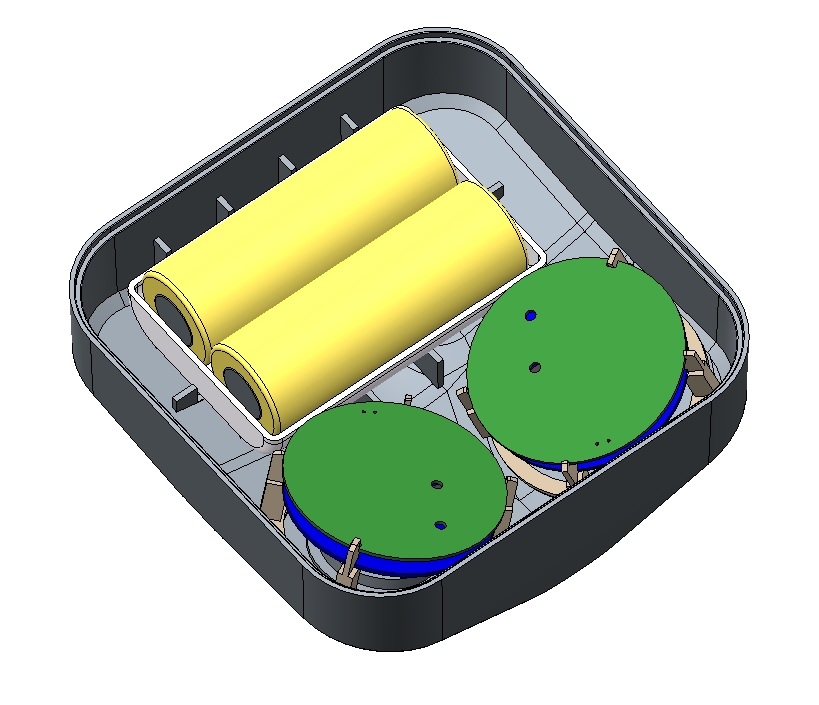

Variants with one or two internal sensors allow optimization depending on seating layout and coverage requirements.

Rail compliance

Prism is compliant with EN 45545 and EN 50155 for railway applications.

Variants

The product is available in multiple variants with different mounting geometries and sensor configurations.

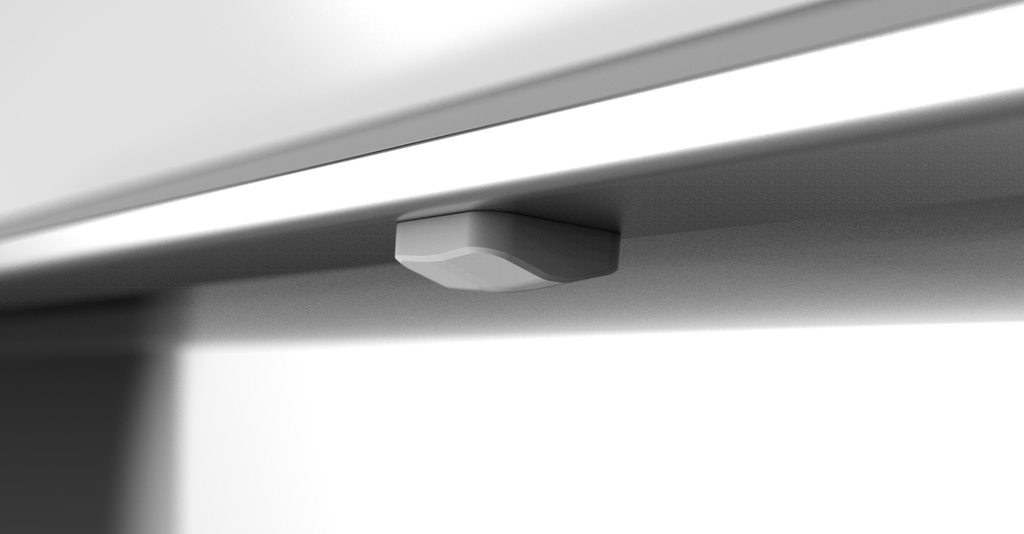

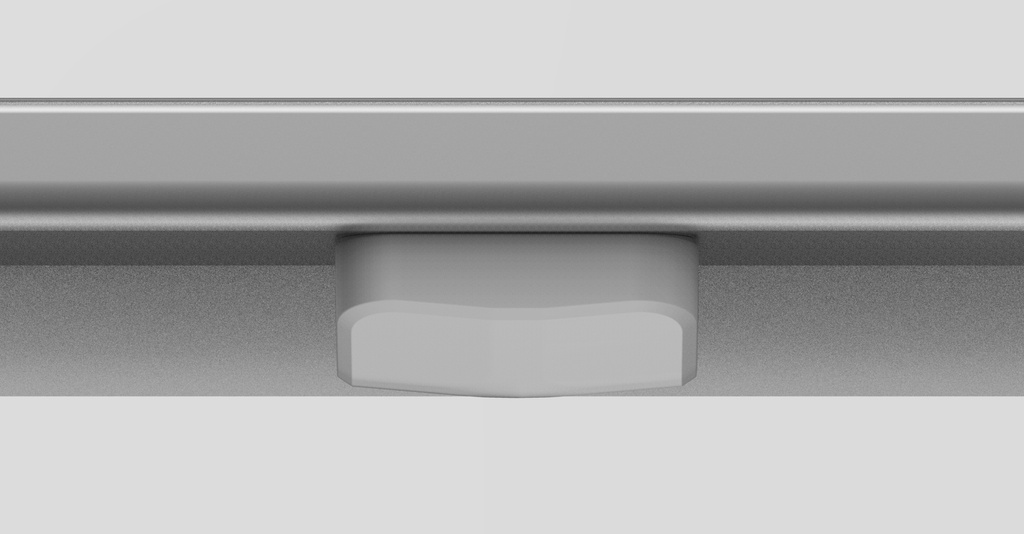

Installation

Prism is mounted using adhesive, enabling quick and flexible installation on a wide range of surfaces.
Rev B, 2026-03-18
