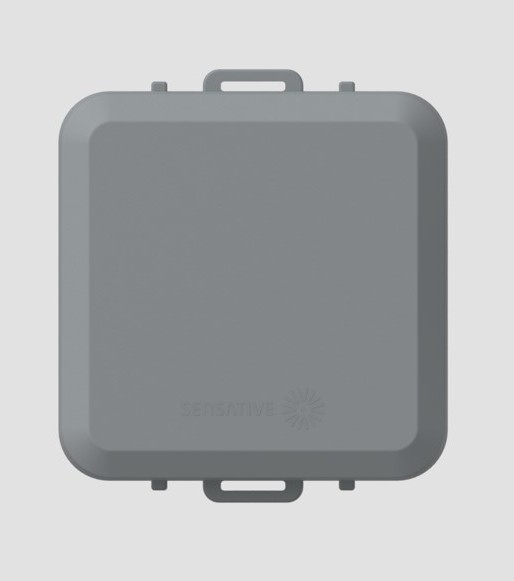

Square Tracker Xtreme LoRaWAN
Square Tracker Xtreme is a ruggedized, low-power device designed for reliable indoor positioning and asset tracking using Wi-Fi-based geolocation. By scanning nearby Wi-Fi MAC addresses, it enables accurate positioning in indoor and GPS-denied environments with significantly lower power consumption than traditional GPS trackers.
Built for industrial applications, it features a sealed enclosure, conformal-coated electronics, and a robust mechanical design, making it suitable for demanding indoor and outdoor use.
With a high-capacity battery and intelligent power management, Square Tracker Xtreme delivers 10+ years of operation, enabling long-term, maintenance-free deployments.
Typical use cases
- Indoor and site-wide asset tracking
- Logistics and equipment monitoring
- Construction and industrial asset tracking
- Healthcare equipment tracking
- Monitoring of containers and high-value assets
Key advantages
- Wi-Fi-based positioning optimized for indoor and low-power tracking
- Ultra-low power consumption enabling long device lifetime
- 10+ years battery life for maintenance-free operation
- Ruggedized design with IP68 and IK06 ratings
- Motion and tilt detection using a built-in 3D accelerometer
- Flexible installation using adhesive, cable ties, or screws with mounting frame
- Reliable performance in demanding environments
Positioning technology
Square Tracker Xtreme primarily uses Wi-Fi-based positioning by scanning nearby Wi-Fi MAC addresses, with location calculated via a cloud-based location service.
This enables efficient positioning in indoor and GPS-denied environments with very low power consumption.
For outdoor use, the device also supports GNSS (GPS & BeiDou), providing additional positioning capability.
- Wi-Fi geolocation for indoor and low-power positioning
-
GNSS (GPS & BeiDou) for outdoor positioning
This functionality requires a compatible cloud service such as Sensative Yggio.
Smart operation & power efficiency
The built-in 3D accelerometer enables intelligent operation by detecting motion and tilt. This can be used for movement alarms or to control device activity, such as entering sleep mode during inactivity to conserve energy.
Battery & performance
Square Tracker Xtreme includes a 4 Ah battery supporting over 10 years of battery life under standard configuration.
The device can be configured for different update intervals, such as periodic updates or event-based tracking, depending on application needs.
Installation

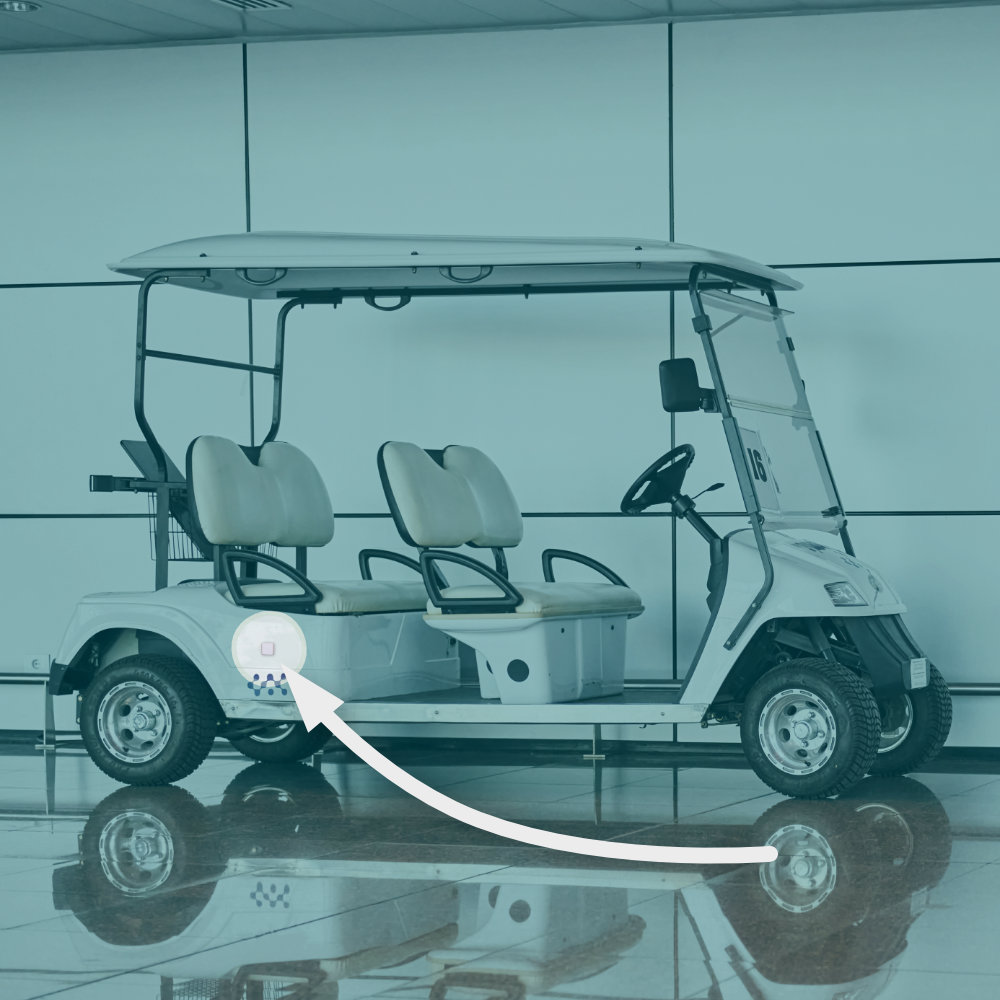

Square Tracker Xtreme can be mounted using adhesive, cable ties, or screws with the included mounting frame, enabling secure installation across a wide range of surfaces.
Rev B, 2026-03-18
| Application | |
|---|---|
| Application | Tracking, Asset management |
| Benefits | |
| Benefits | 10+ years battery life, Long-range (2 km), Motion controlled, Location-aware, Simple installation & mounting, Built-in data memory, WakeOnImpact |
| In/Outdoor usage | Indoor & Outdoor |
| Features | |
| Sensor | Temperature, 3D accelerometer |
| Configuration | LoRaWAN OTAA, NFC |
| Geopositioning | WIFI 2.4 GHz, GNSS (GPS & BeiDou) |
| Connectivity data | |
| Frequency | EU (868 MHz) or India (868 MHz) or US (915 MHz) or AU915 - Australia 915 - 928 MHz or AS923-1 - Asia 902 - 928 MHz or KR920 - South Korea 902 - 928 MHz or AS923-2 - Asia 923-925 MHz |
| Protocols / Connectivity | LoRaWAN, NFC |
| LoRaWAN version | V 1.0.4 |
| LoRaWAN class | Class A |
| Sensor data | |
| Temperature accuracy | ± 2 °C/ 3.6 °F @ 0-30 °C/32-86°F |
| Sensor type | GPS/Beidou and WiFi receiver |
| Power supply | |
| Powered by | Built-in battery (LiMn02), LiMnO2, 4 AH |
| Mechanical data | |
| Weight (g) | 61 |
| Width (mm) | 60.4 |
| Depth (mm) | 13 |
| Height (mm) | 67.2 |
| Internal | |
| Manufacturer | Sensative |
| Country of origin | Poland |
