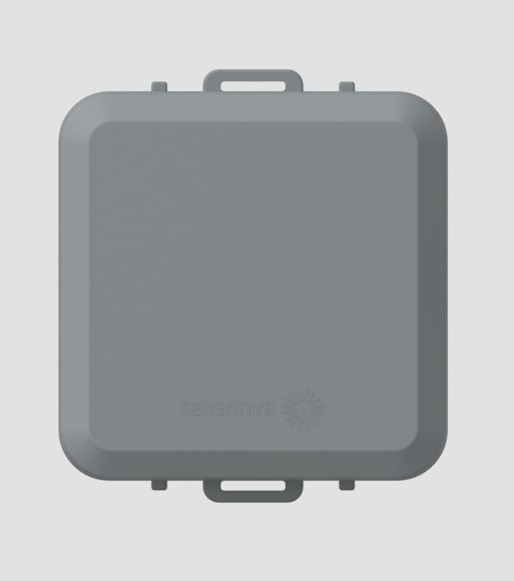

Square Tracker Xtreme LoRaWAN
Square Tracker Xtreme is a ruggedized, low-power device designed for reliable indoor and outdoor positioning and asset tracking. It supports both Wi-Fi (2.4 GHz) and GNSS (GPS & BeiDou) geolocation, enabling accurate positioning across a wide range of environments.
By scanning nearby Wi-Fi MAC addresses, it enables efficient positioning in indoor and GPS-denied environments with very low power consumption, while GNSS provides positioning capability for outdoor use.
Built for industrial applications, it features a sealed enclosure, conformal-coated electronics, and a robust mechanical design, making it suitable for demanding indoor and outdoor use.
With a high-capacity battery and intelligent power management, Square Tracker Xtreme delivers 10+ years of operation, enabling long-term, maintenance-free deployments.
Typical use cases
- Site-wide asset tracking
- Logistics and equipment monitoring
- Healthcare equipment tracking
- Tracking of containers and high-value assets
- Equipment tracking across facilities with mixed indoor and outdoor coverage
Key advantages
- Wi-Fi-based positioning optimized for indoor and low-power tracking
- Combined Wi-Fi and GNSS positioning in a single device
- 3D accelerometer enabling motion and tilt controlled operation
- Ruggedized design with IP68 and IK06 ratings
- 10+ years battery life for long-term operation
Positioning technology
Square Tracker Xtreme primarily uses Wi-Fi-based positioning by scanning nearby Wi-Fi MAC addresses, with location calculated via a cloud-based location service.
This enables efficient positioning in indoor and GPS-denied environments with very low power consumption.
For outdoor use, the device also supports GNSS (GPS & BeiDou), providing additional positioning capability.
This functionality requires a compatible cloud service such as Sensative Yggio.
Smart operation & power efficiency
The built-in 3D accelerometer enables intelligent operation by detecting motion and tilt. This can be used for movement alarms or to control device activity, such as entering sleep mode during inactivity to conserve energy.
Battery & performance
Square Tracker Xtreme includes a 4 Ah battery supporting over 10 years of battery life under standard configuration.
The device can be configured for different update intervals, such as periodic updates or event-based tracking, depending on application needs.
Installation
Square Tracker Xtreme can be mounted using adhesive, cable ties, or screws with the included mounting frame, enabling secure installation across a wide range of surfaces.
Rev B, 2026-03-18
| Application | |
|---|---|
| Application | Tracking, Asset management |
| Benefits | |
| Benefits | 10+ years battery life, Long-range (2 km), Motion & tilt detection, Combined WIFI and GNSS positioning, Simple installation & mounting, Ruggedized for harsh conditions, WakeOnImpact |
| In/Outdoor usage | Indoor & Outdoor |
| Features | |
| Sensor | Temperature, 3D accelerometer |
| Configuration | LoRaWAN OTAA, NFC |
| Geopositioning | WIFI 2.4 GHz, GNSS (GPS & BeiDou) |
| Connectivity data | |
| Frequency | EU (868 MHz) or India (868 MHz) or US (915 MHz) or AU915 - Australia 915 - 928 MHz or AS923-1 - Asia 902 - 928 MHz or KR920 - South Korea 902 - 928 MHz or AS923-2 - Asia 923-925 MHz |
| Protocols / Connectivity | LoRaWAN, NFC |
| LoRaWAN version | V 1.0.4 |
| LoRaWAN class | Class A |
| Sensor data | |
| Temperature accuracy | ± 2 °C/ 3.6 °F @ 0-30 °C/32-86°F |
| Sensor type | GPS/Beidou and WiFi receiver |
| Power supply | |
| Powered by | Built-in battery (LiMn02), LiMnO2, 4 AH |
| Mechanical data | |
| Weight (g) | 61 |
| Width (mm) | 60.4 |
| Depth (mm) | 13 |
| Height (mm) | 67.2 |
| Internal | |
| Manufacturer | Sensative |
| Country of origin | Poland |
