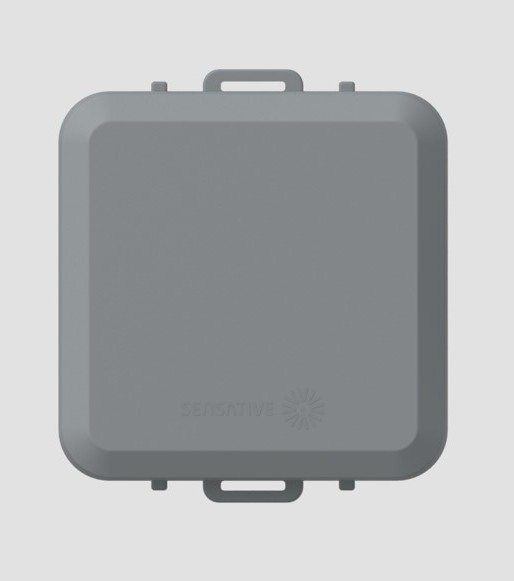

Sensative Square Tracker Xtreme GPS for LoRaWAN
Meet the compact indoor/outdoor LoRaWAN asset tracking sensor with GPS and extended battery life
Square Tracker Xtreme GPS, LoRaWAN
Square Tracker Xtreme GPS is a ruggedized, low-power device designed for high-performance outdoor tracking. It combines LoRaWAN connectivity with optimized GNSS positioning, delivering reliable location data in demanding environments.
This version is designed for enhanced GNSS performance and features an 18 × 18 mm patch antenna with directional characteristics and 2.4 dBi gain. This enables high positioning accuracy through improved signal reception in real-world outdoor conditions.
Built for industrial applications, it features a sealed enclosure, conformal-coated electronics, and a robust mechanical design, making it suitable for demanding indoor and outdoor use.
With a high-capacity battery and efficient power management, Square Tracker Xtreme GPS supports long operational lifetime while enabling high-quality positioning performance.
Typical use cases
- Outdoor asset tracking in logistics and supply chains
- Vehicle and fleet monitoring
- Tracking of containers and high-value goods
- Construction and agricultural equipment tracking
- Applications requiring high GNSS accuracy
Key advantages
- High-performance GNSS positioning optimized for outdoor use
- 18 × 18 mm patch antenna with 2.4 dBi gain
- High positioning accuracy enabled by optimized antenna design
- Ruggedized design with IP68 and IK06 ratings
- Motion and tilt detection using a built-in 3D accelerometer
- Flexible installation using adhesive, cable ties, or screws with mounting frame
- Reliable operation in demanding environments
Positioning technology
Square Tracker Xtreme GPS uses both GNSS (GPS & BeiDou) and Wi-Fi-based positioning, with location calculated via a cloud-based location service.
GNSS enables outdoor positioning, while Wi-Fi scanning supports positioning in indoor or GPS-denied environments.
- GNSS (GPS & BeiDou) for outdoor positioning
- Wi-Fi geolocation for indoor and low-power positioning
This functionality requires a compatible cloud service such as Sensative Yggio.
Smart operation & power efficiency
The built-in 3D accelerometer detects motion and tilt and can be used for movement-based alarms or to control device activity such as entering sleep mode during inactivity.
This enables configuration of the device based on required positioning performance and battery lifetime.
Battery & performance
Square Tracker Xtreme GPS includes a high-capacity battery designed for long-term operation.
Battery life depends on configuration, positioning frequency, and GNSS usage, allowing optimization between accuracy, update rate, and lifetime.
Installation

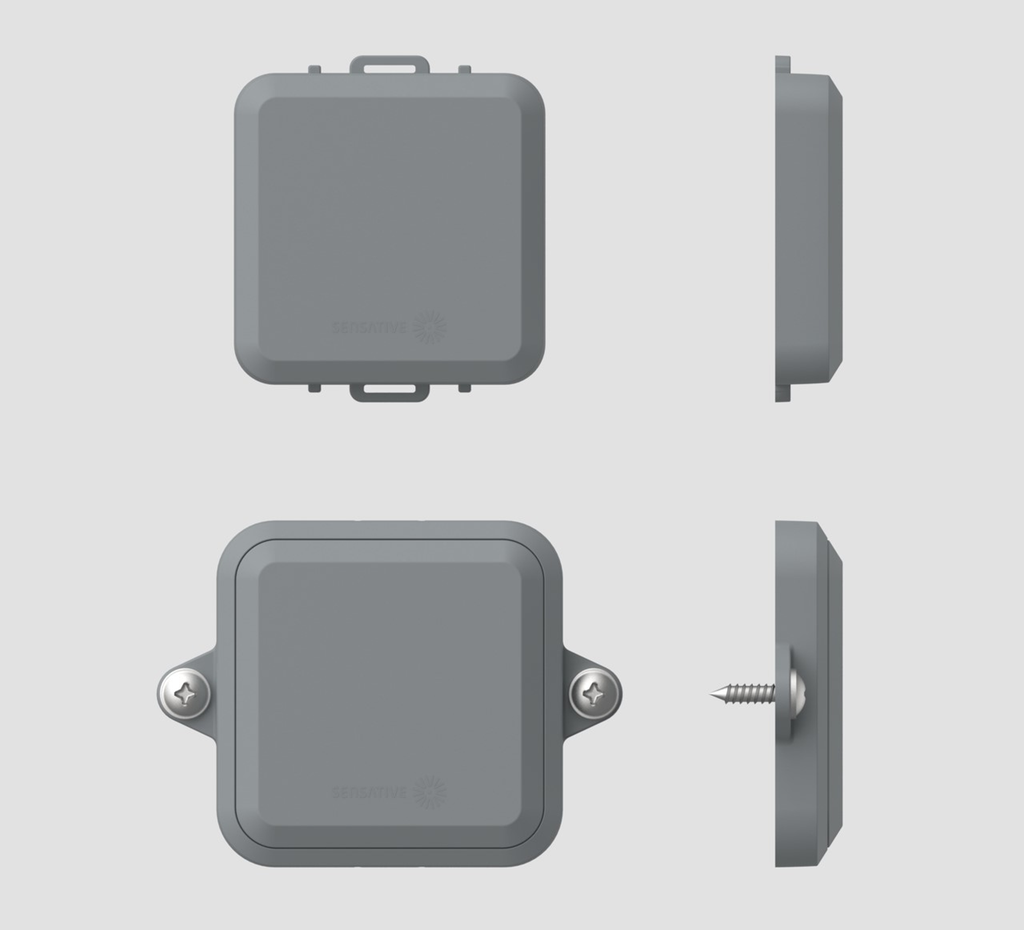

Square Tracker Xtreme GPS can be mounted using adhesive, cable ties, or screws with the included mounting frame, enabling secure installation across a wide range of surfaces.
Rev A, 2026-03-18
| Application | |
|---|---|
| Application | Tracking, Asset management, Vehicle monitoring |
| Benefits | |
| Benefits | 10+ years battery life, Long-range (10 km), Motion controlled, Location-aware, Simple installation & mounting, Built-in data memory, WakeOnImpact |
| In/Outdoor usage | Indoor & Outdoor |
| Features | |
| Configuration | LoRaWAN OTAA, NFC |
| Geopositioning | WIFI 2.4 GHz, GNSS (GPS & BeiDou) |
| Sensor | Temperature, Accelerometer |
| Connectivity data | |
| Frequency | EU (868 MHz) or India (868 MHz) or US (915 MHz) or AU915 - Australia 915 - 928 MHz or AS923-1 - Asia 902 - 928 MHz or KR920 - South Korea 902 - 928 MHz or AS923-2 - Asia 923-925 MHz |
| LoRaWAN class | Class A |
| LoRaWAN version | V 1.0.4 |
| Protocols / Connectivity | LoRaWAN, NFC |
| Sensor data | |
| Sensor type | GPS/Beidou and WiFi receiver |
| Temperature accuracy | ± 1 °C/ 3.6°F @ 0-30 °C/32-86°F |
| Power supply | |
| Powered by | Built-in battery (LiMn02), 4 Ah |
| Mechanical data | |
| Depth (mm) | 13 |
| Height (mm) | 67.2 |
| Weight (g) | 61 |
| Width (mm) | 60.4 |
| Internal | |
| Country of origin | Poland |
| Manufacturer | Sensative |
