Sensative Square Tracker for LoRaWAN

Square Tracker LoRaWAN

Square Tracker is a low-power device designed for accurate indoor positioning and asset tracking using Wi-Fi-based geolocation. By scanning nearby Wi-Fi MAC addresses, it enables reliable positioning in indoor or GPS-denied environments.

In addition to positioning, Square Tracker includes motion detection (3D accelerometer), air pressure, and temperature sensing, enabling advanced tracking use cases such as movement detection, tilt monitoring, and enhanced 3D positioning.

With configurable performance profiles and battery options, Square Tracker delivers up to 10 years of operation, enabling long-term, maintenance-free deployments without frequent battery replacements.

Typical use cases

• Indoor asset tracking in offices, hospitals, and facilities
• Equipment and inventory management

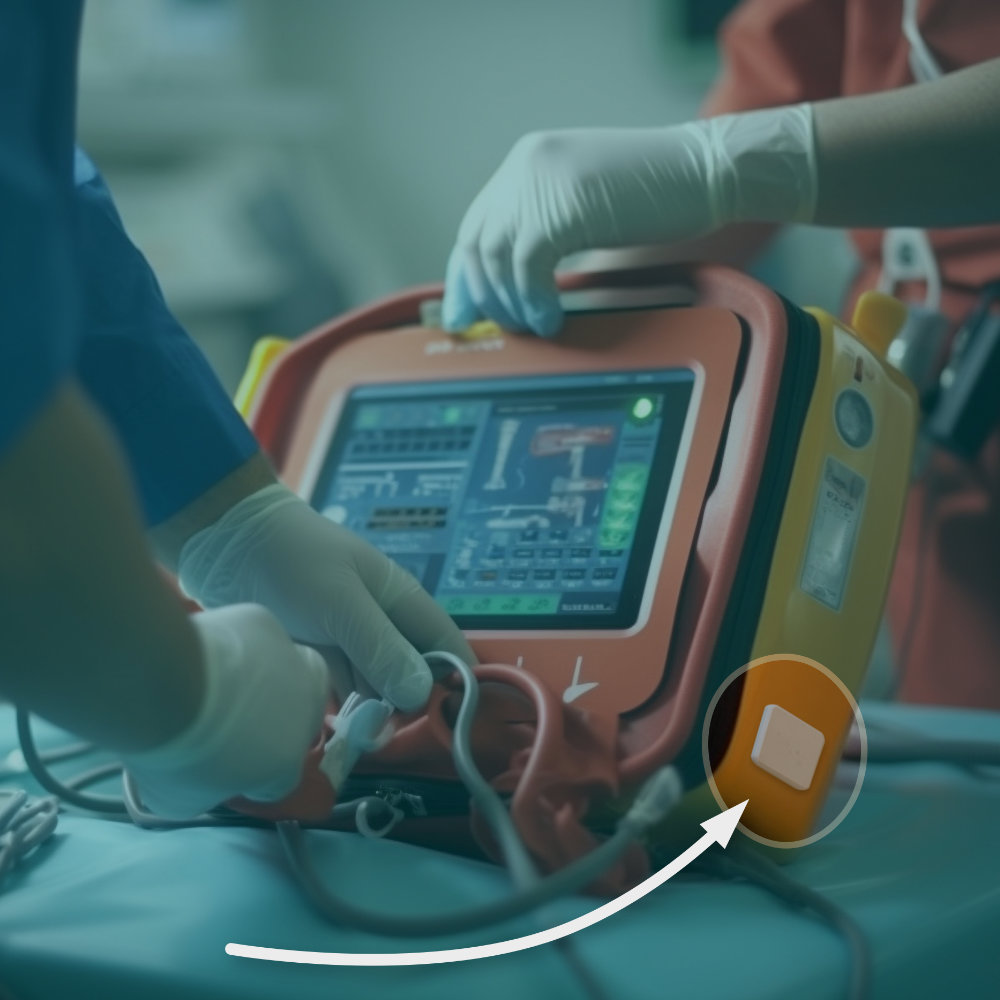

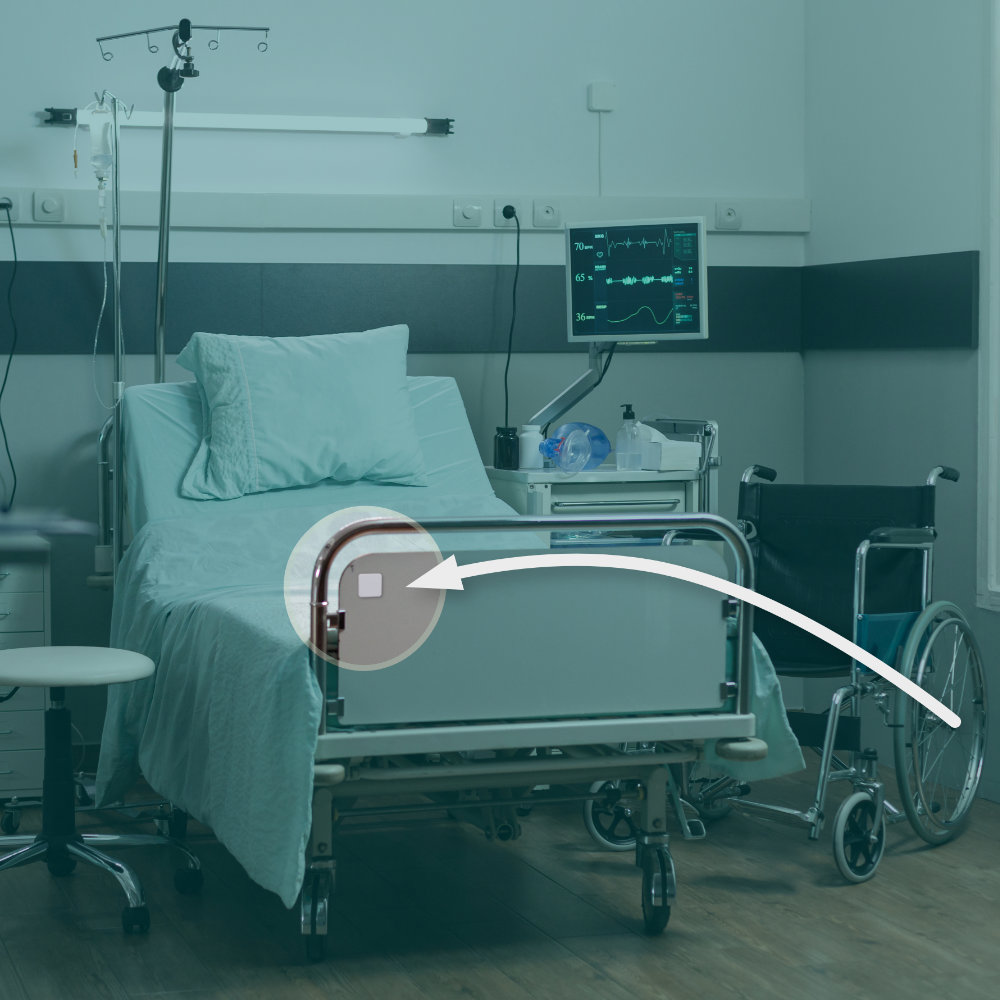

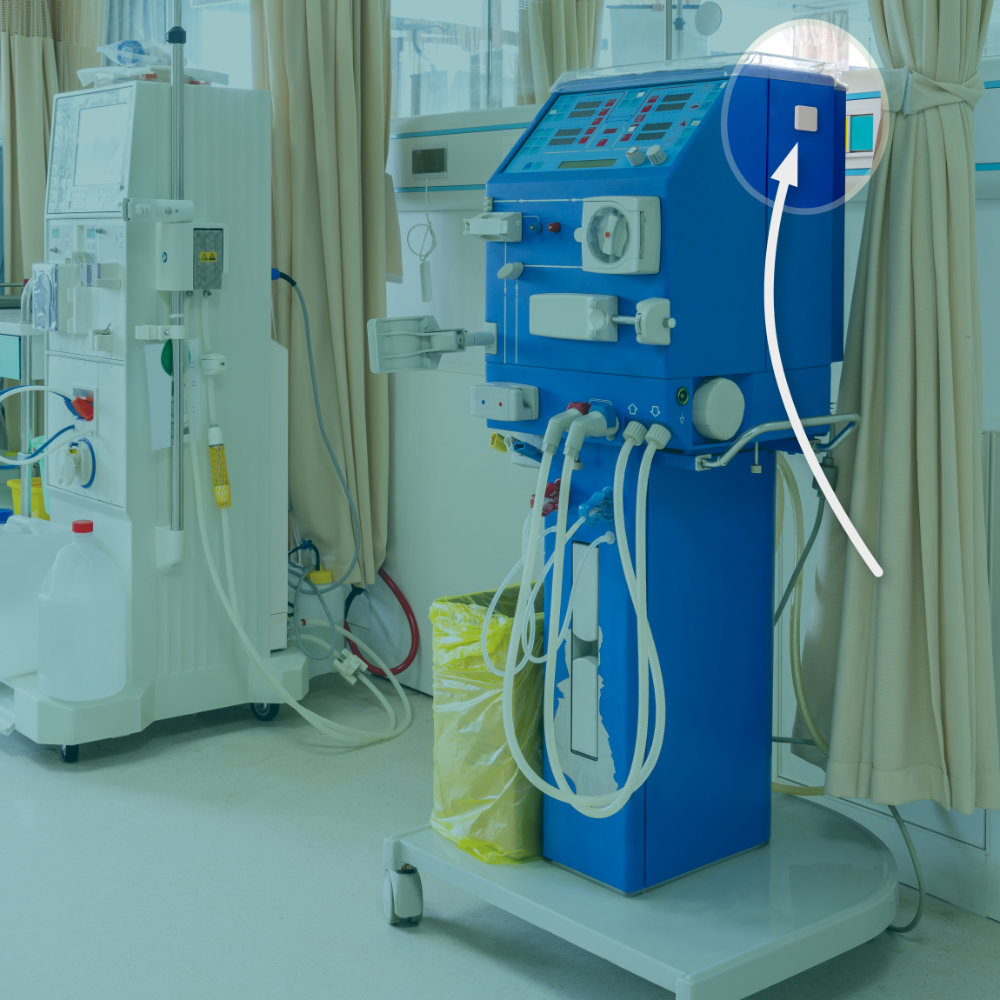

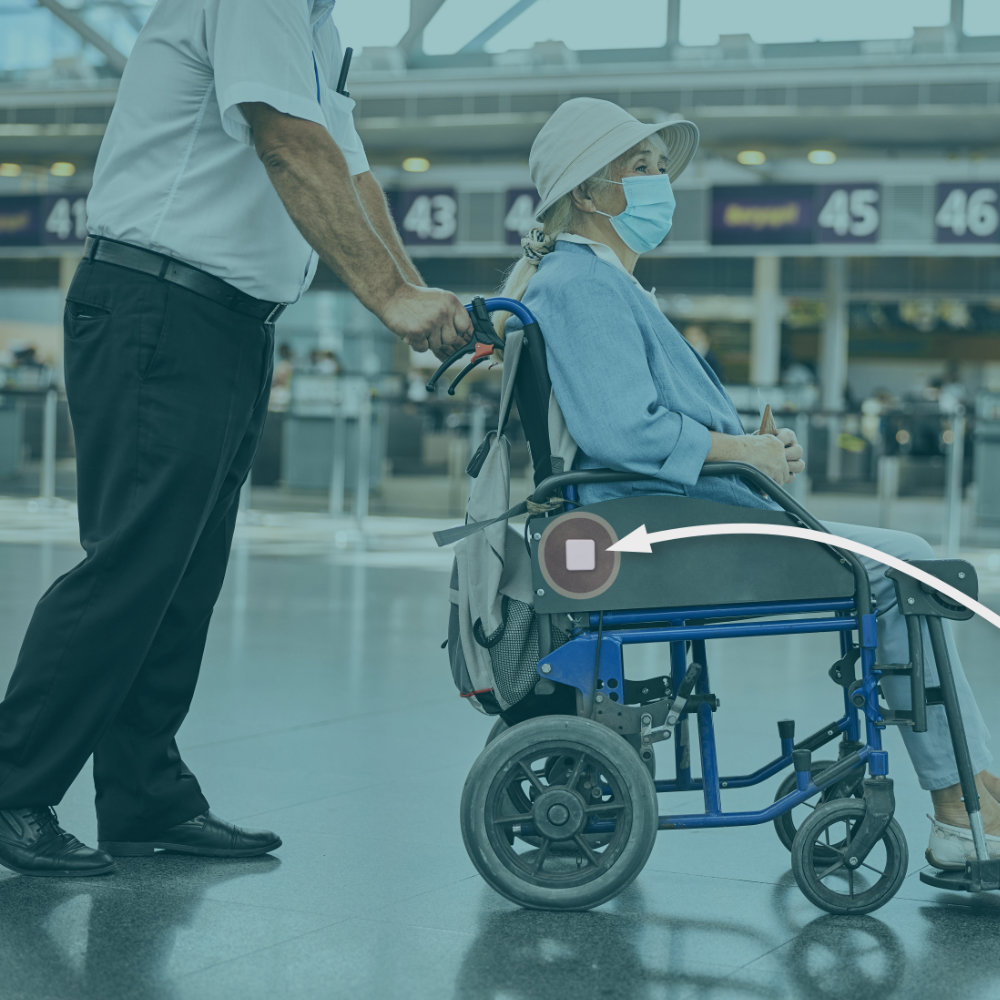

• Healthcare equipment tracking (e.g. beds, wheelchairs)
• Logistics and material flow monitoring
• Theft detection and movement alerts

Key advantages

• Accurate indoor positioning – Wi-Fi-based geolocation without GPS
• 3D positioning support – air pressure sensor enables floor-level detection
• Motion and tilt detection – built-in accelerometer for movement-based tracking and alarms
• Long battery life – up to 10 years depending on configuration
• Multi-function sensor – includes motion, air pressure, and temperature sensing
• Easy configuration – via NFC using an Android smartphone
• Compact and discreet design – suitable for professional environments

Advanced capabilities

Square Tracker uses Wi-Fi MAC address scanning combined with cloud-based positioning services to determine location indoors.

The integrated air pressure sensor enables improved vertical positioning (floor detection) when used together with reference sensors.

The built-in 3D accelerometer supports:

• Motion detection
• Tilt detection
• Theft and movement alarms
• Energy-saving features such as sleep mode

Battery options & form factor

Square Tracker is available in two hardware configurations:

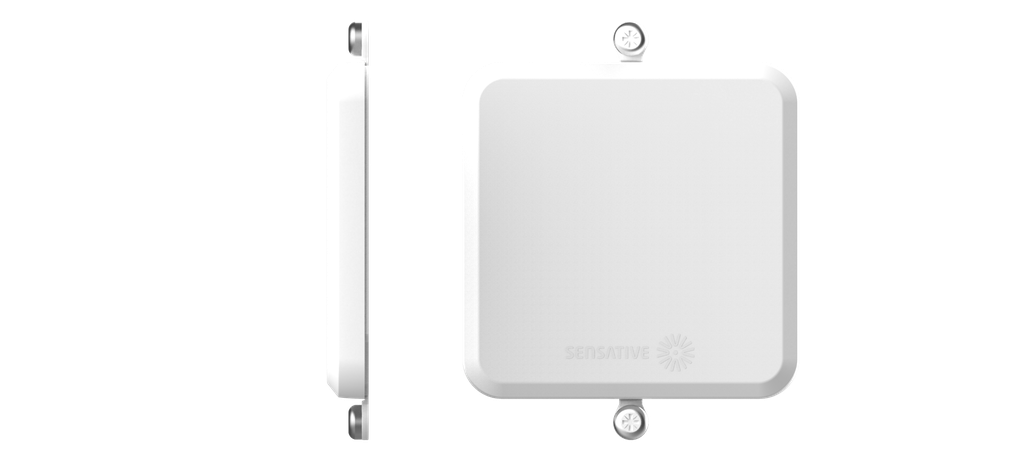

• 750 mAh (7 mm thickness)
• • Slim form factor
  • Up to 10 years battery life with daily position updates

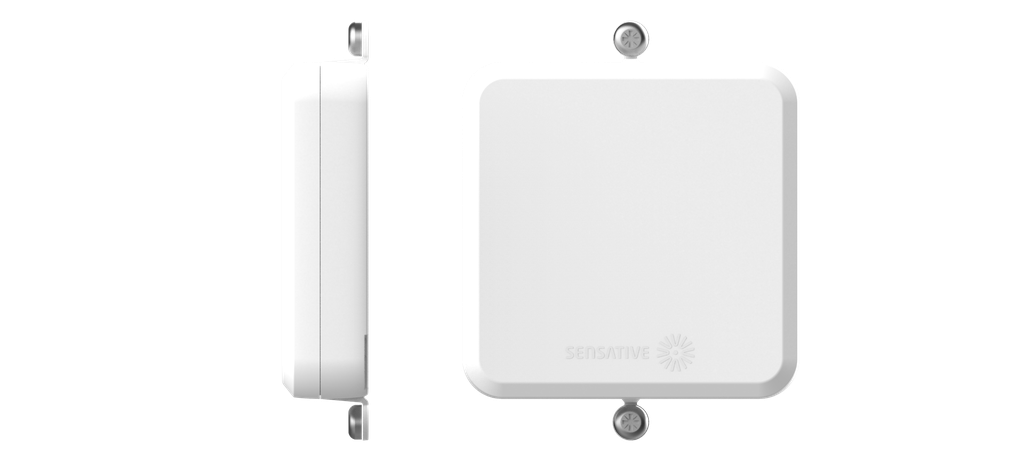

• 6.0 Ah (15 mm thickness)
• • Extended battery capacity
  • Up to 10 years battery life with hourly position updates

This allows optimization between update frequency, battery life, and device size depending on the application.

Installation

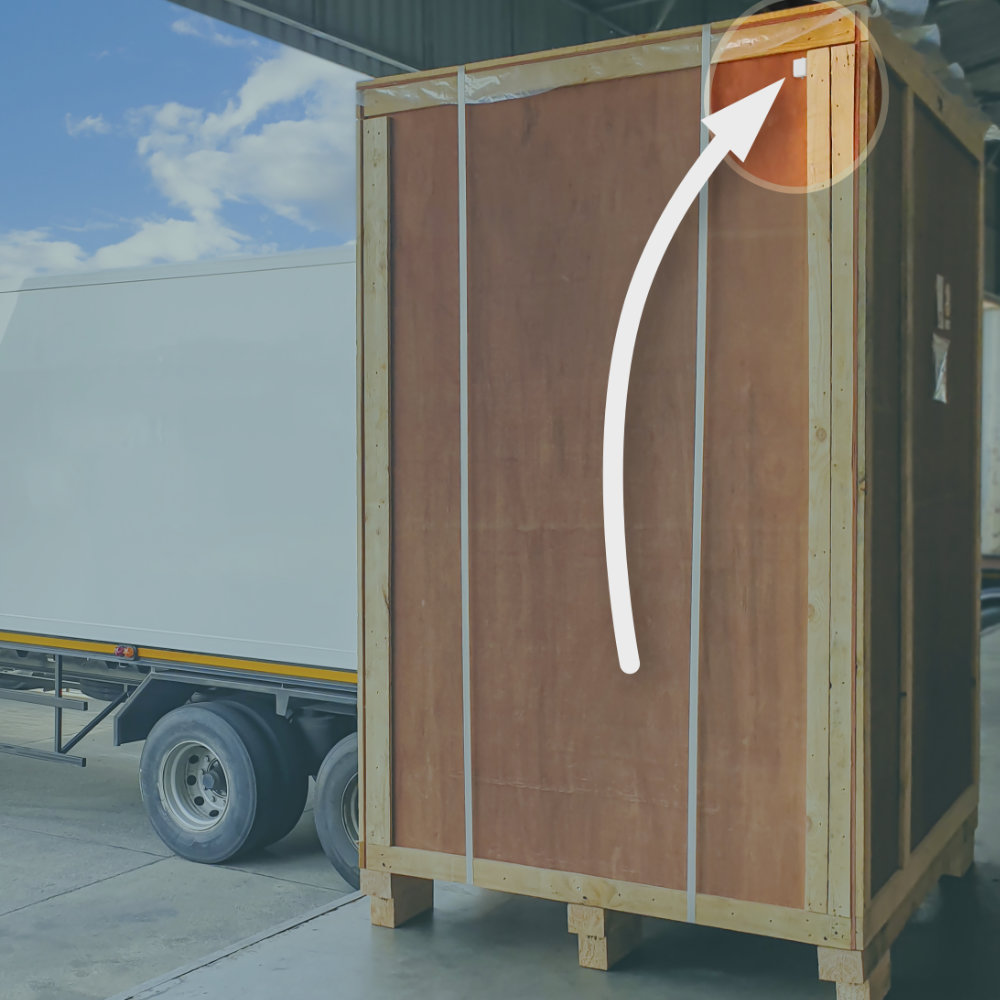

Square Tracker can be mounted using adhesive for quick installation, or with the Sensative Square Screw Mounting Kit (optional) for secure and permanent mounting.

Smart geolocation (without GPS)

Square Tracker supports cloud-based Wi-Fi geolocation, enabling positioning in indoor or GPS-denied environments by scanning nearby Wi-Fi networks.

This functionality requires a compatible cloud service such as Sensative Yggio.

Rev B, 2026-0318
