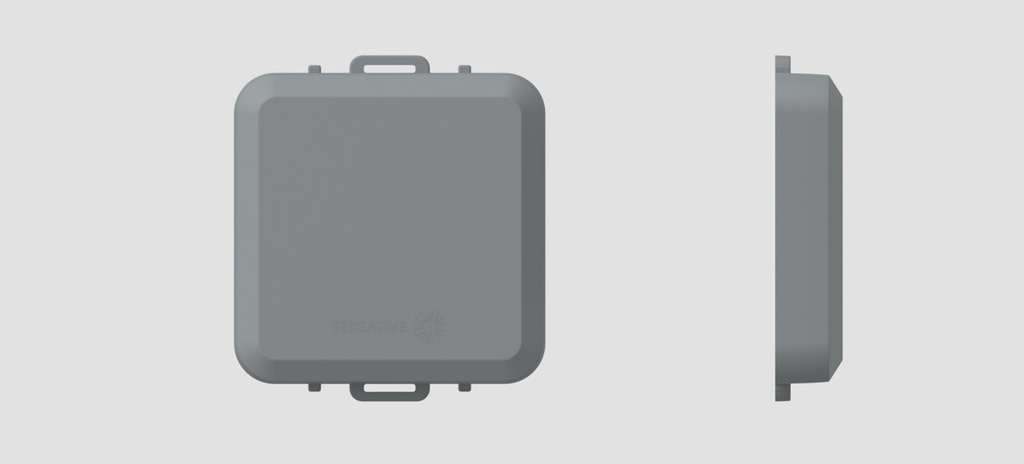

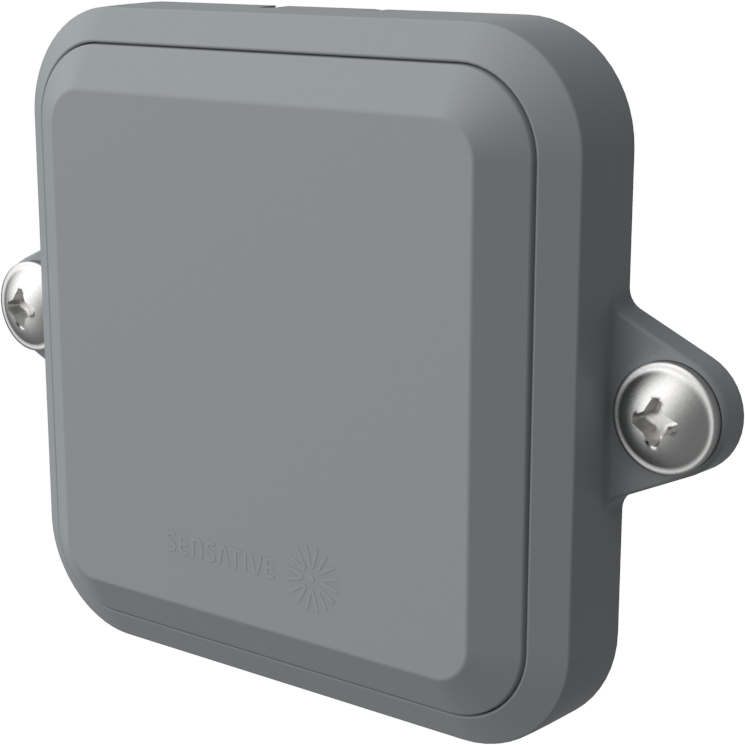

Square Tracker Xtreme for LoRaWAN
Compact Indoor/Outdoor asset tracker with extended battery life
This compact sensor provides indoor and outdoor locations, and like all Sensative products, it is designed with precision and longevity in mind. For instance, the position calculation is performed in the cloud (rather than on-device) to save significant amounts of power.
The custom battery provides many years of problem-free operation. In contrast, most battery-powered asset-tracking devices last around a year before they need to be recharged or changed. Replacing batteries in hundreds or thousands of devices can be expensive, work-intensive, and lead to downtime, increasing overall operation and device ownership costs.
The Square Tracker comes in three different versions. The ultra-compact slim version is merely 7 mm thick yet provides over ten years of battery life. The medium and large versions are 15 mm thick and carry even larger batteries.
Our tracking sensors are designed to be user-friendly, easy to include in most LoRaWAN platforms, and configurable over the air or NFC. They also provide extra value by monitoring the temperature of the asset and its surroundings, highly interesting data in many applications. By including temperature, you save on needing an extra sensor that would otherwise be required.

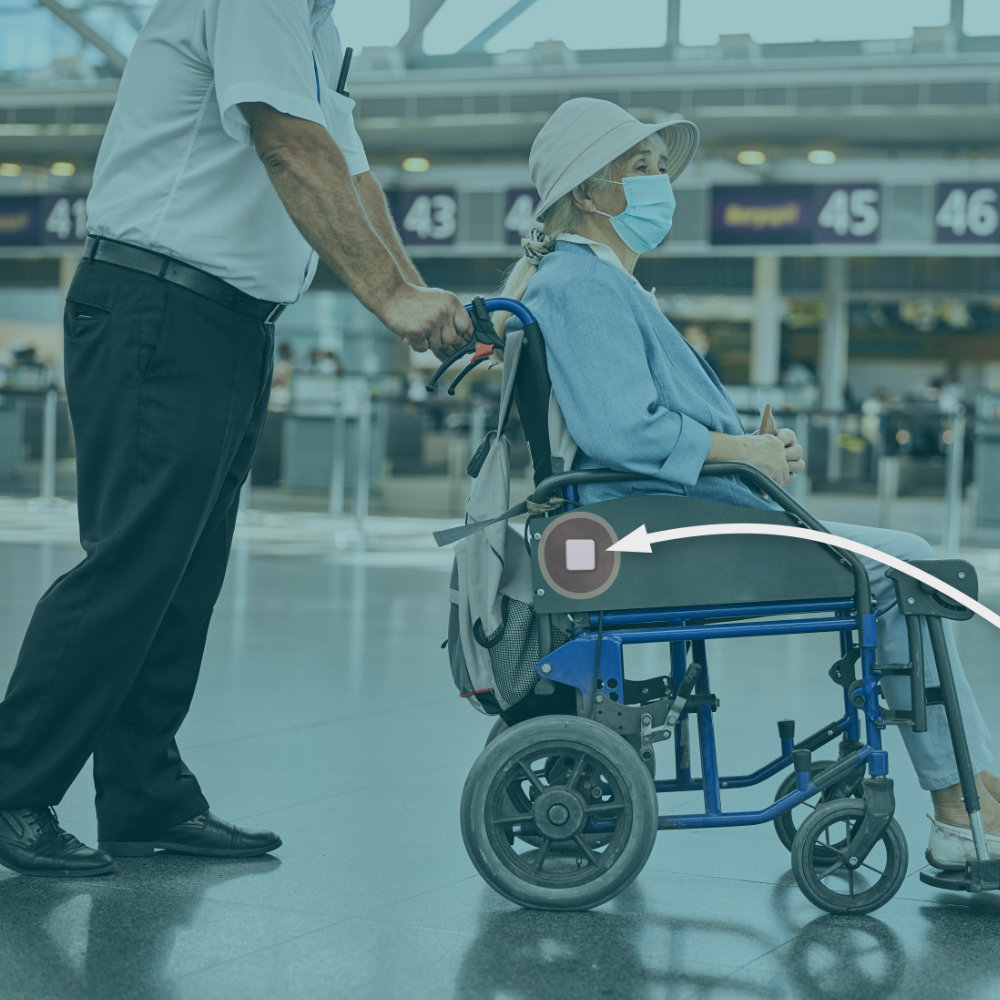

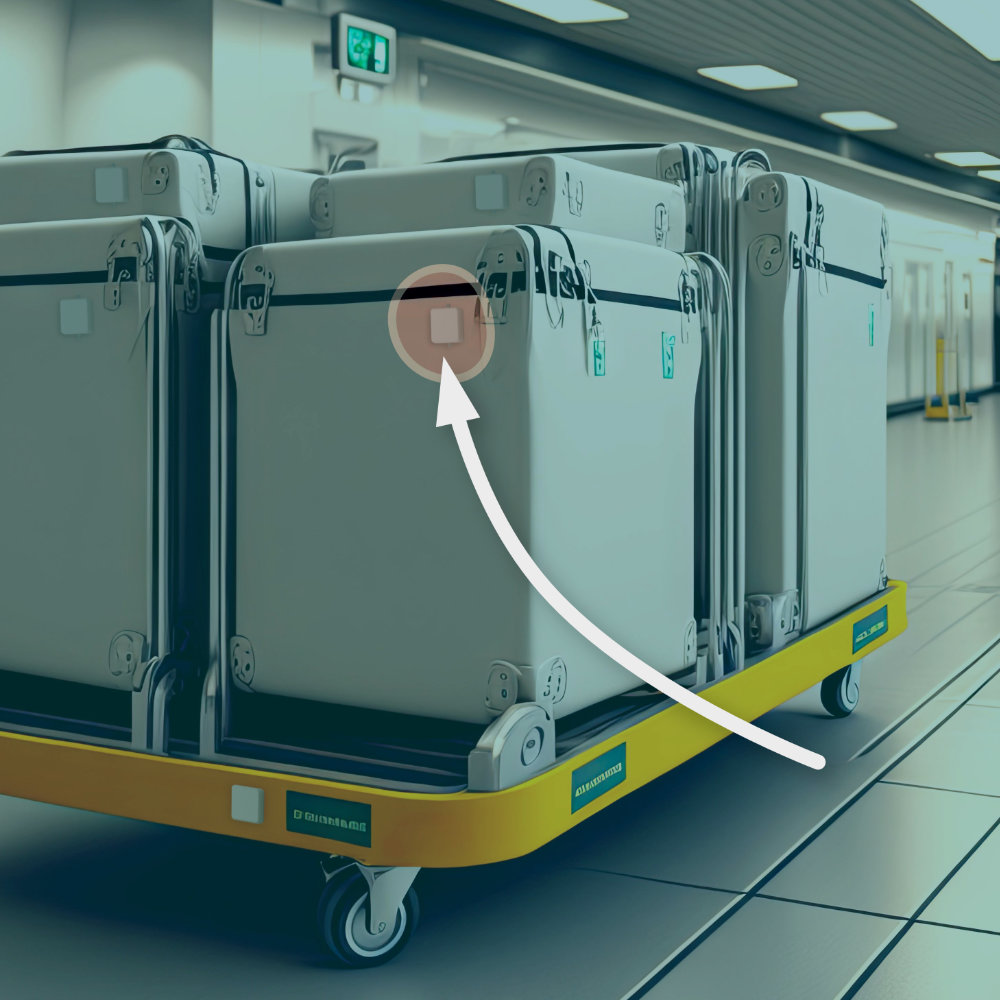

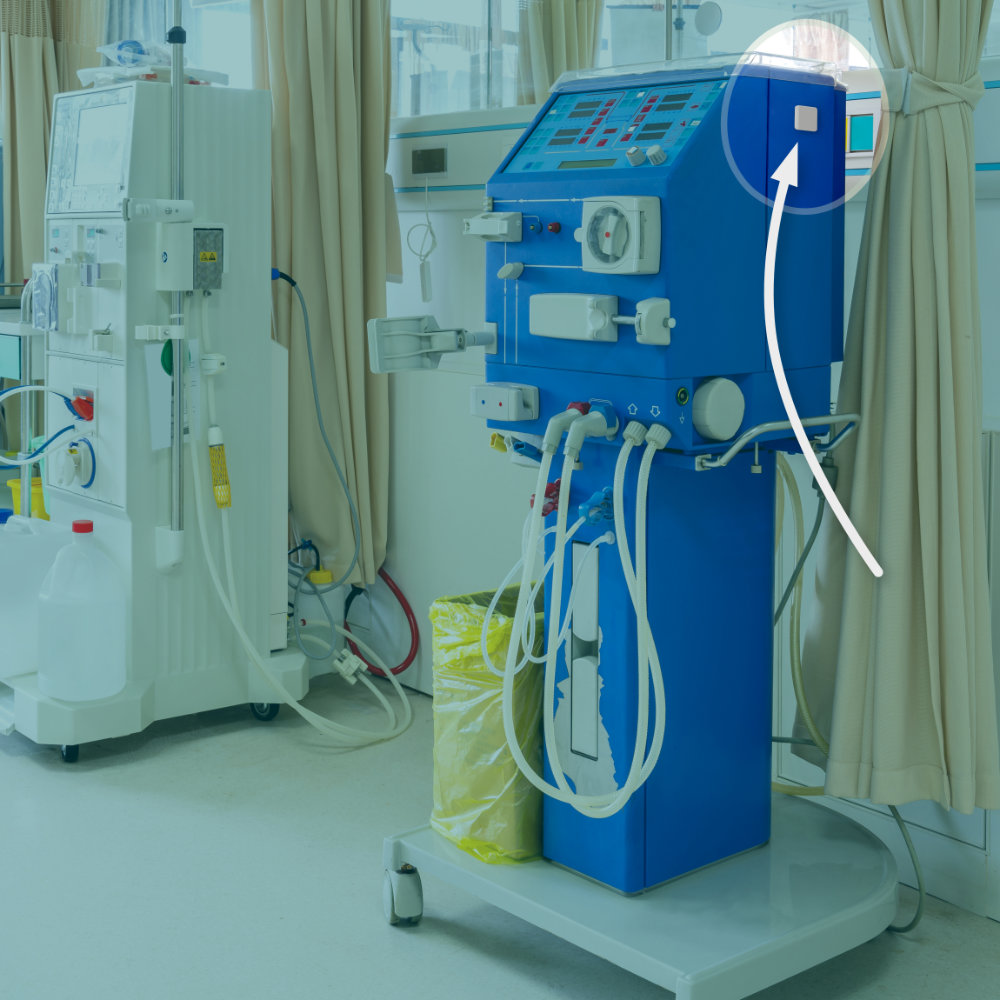

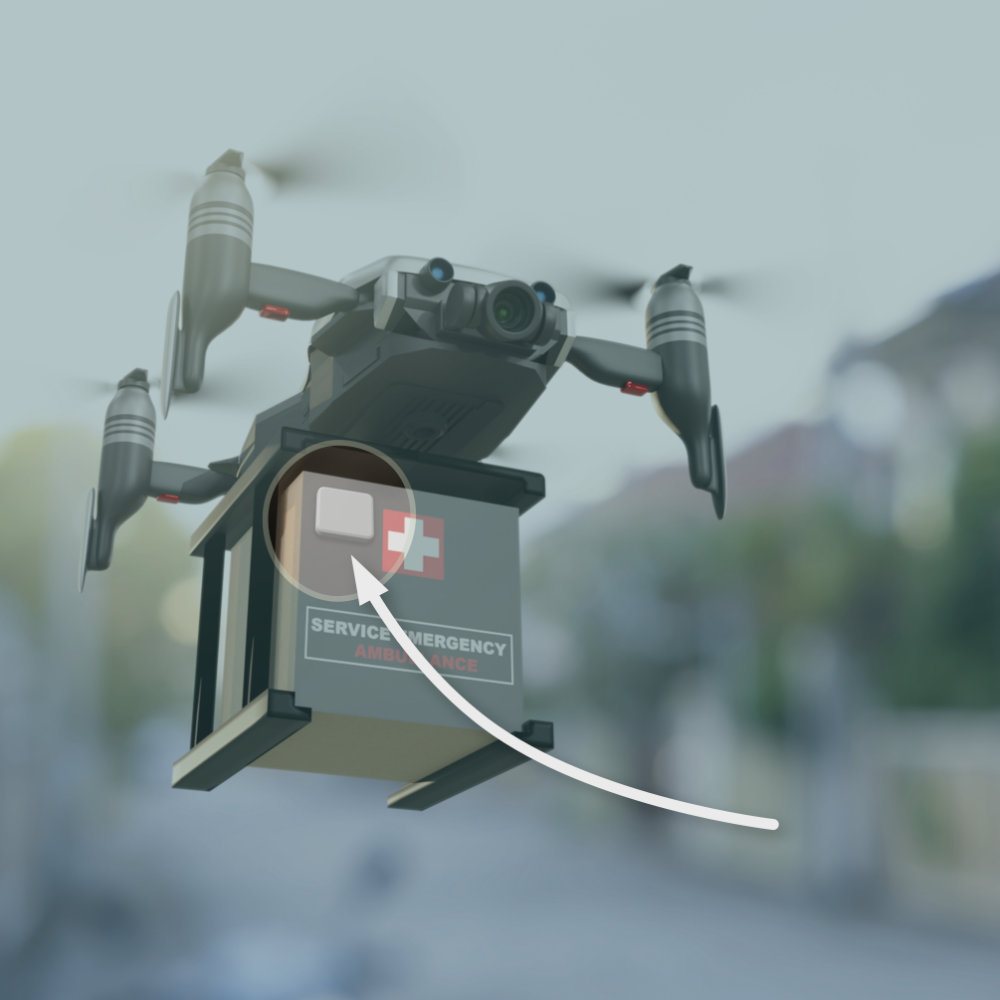

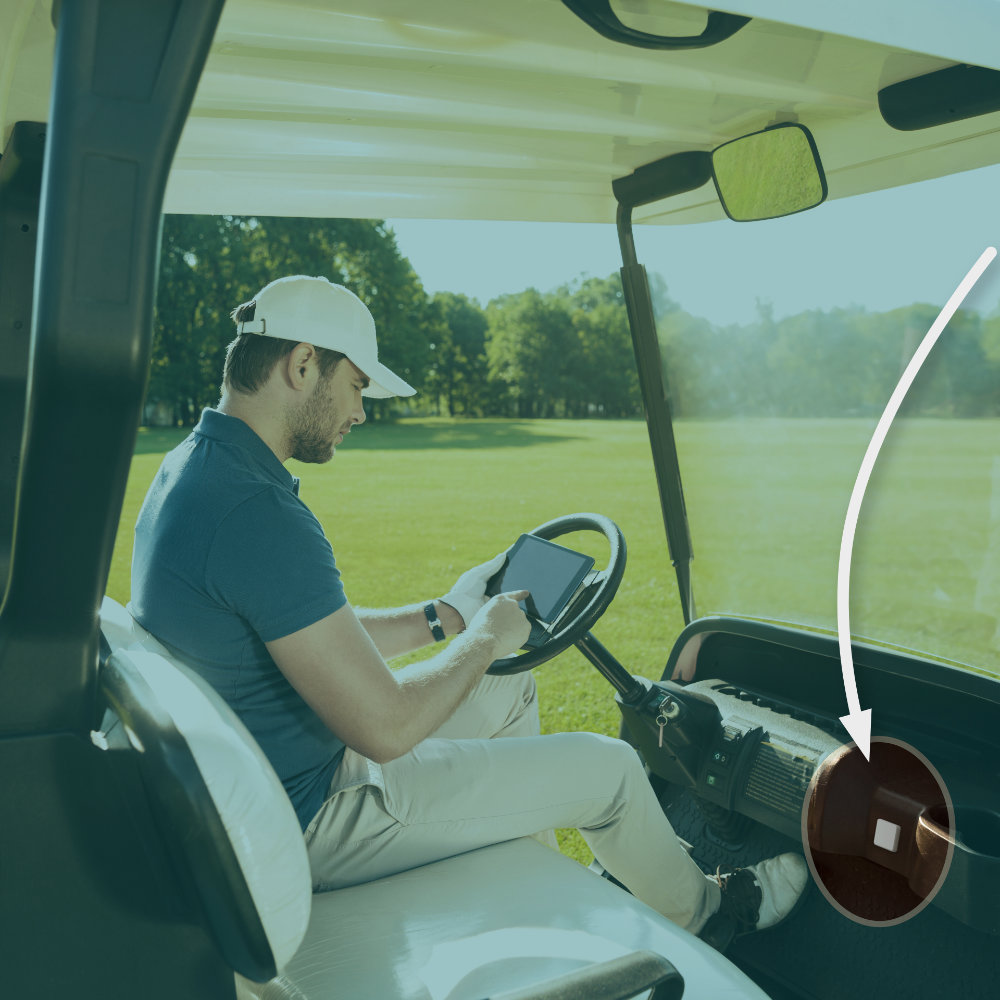

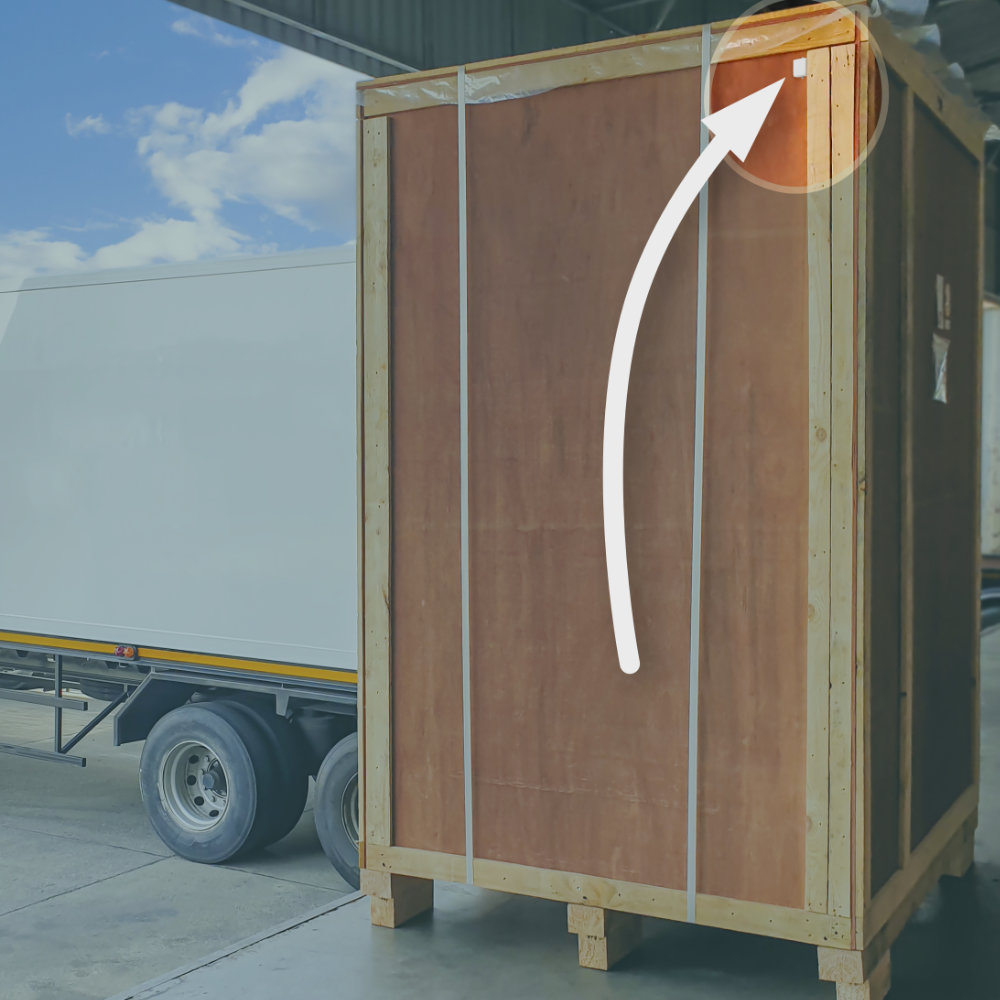

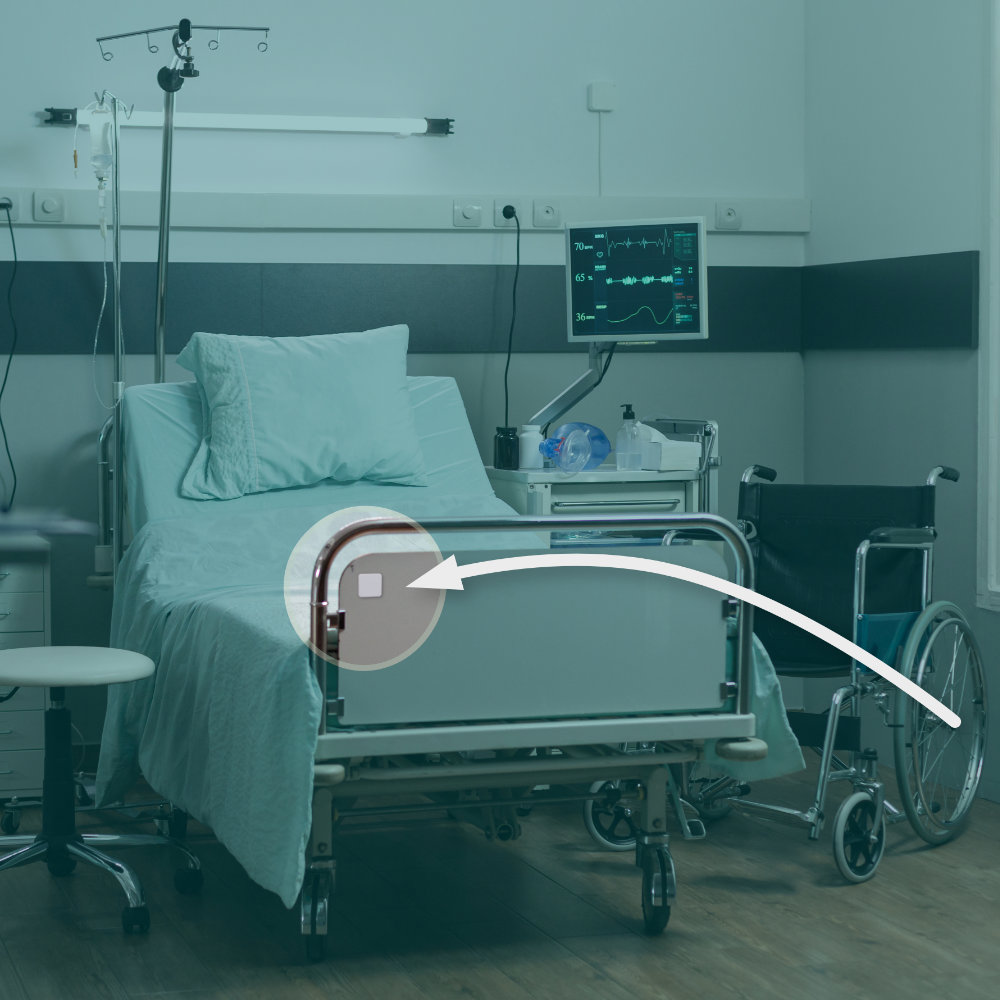

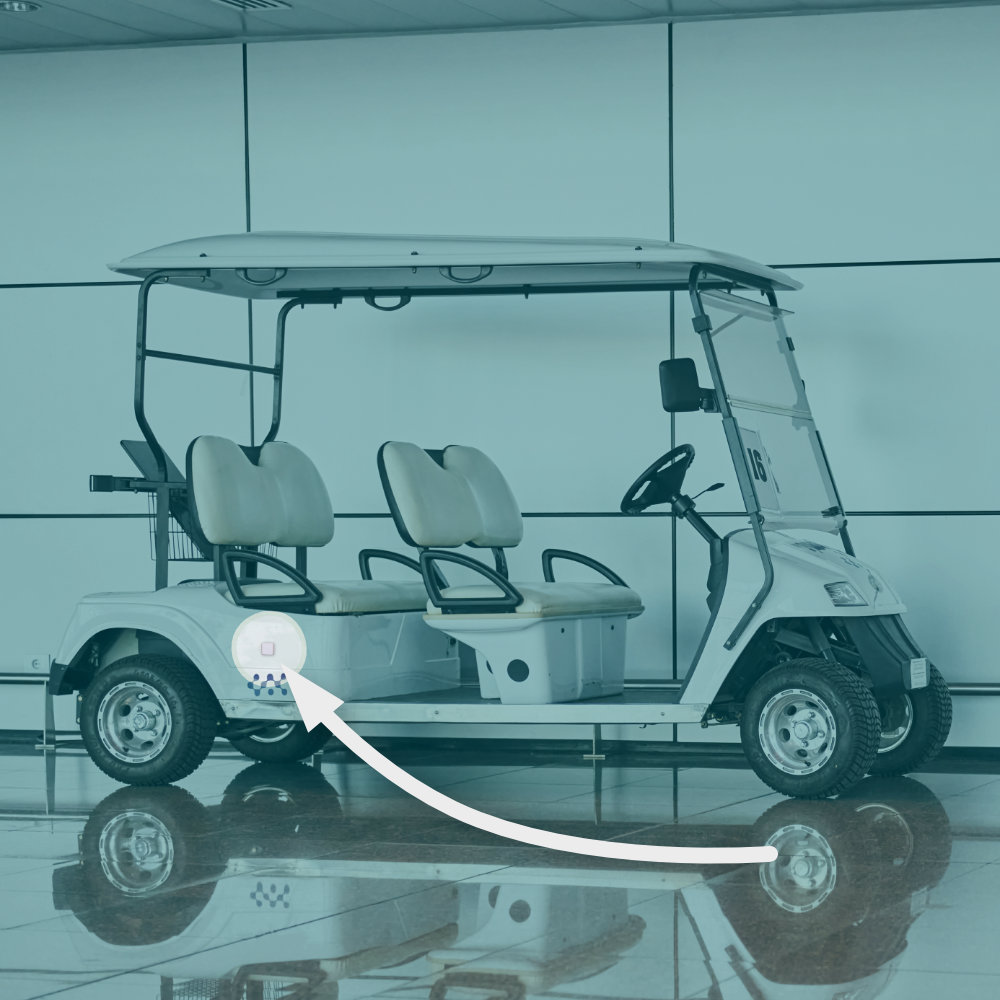

|Application||Tracking, Asset management, Vehicle monitoring|
|Benefits||10+ years battery life, Long-range (2 km), Motion controlled, Air pressure sensor (enabling 3D positioning), Location-aware|
|In/Outdoor usage||Indoor & Outdoor|
|Sensor||Geolocation, Temperature, 3D accelerometer, Air pressure|
|Accessories||Cloud Positioning Service|
|Configuration||LoRaWAN OTAA, NFC|
|Geopositioning||WiFi, GNSS (GPS & BeiDou)|
|Frequency||EU (868 MHz) or US (915 MHz) or AS923-1 - Asia 902 - 928 MHz|
|Protocols / Connectivity||LoRaWAN, NFC|
|LoRaWAN version||V 1.0.4|
|LoRaWAN class||Class A|
|Temperature accuracy||± 1 °C/ 1.8 °F @ 0-30 °C/32-86°F|
|Sensor type||GPS/Beidou and WiFi location|
|Powered by||Non-replaceable battery, LiMnO2, 4 AH|
|Country of origin||Poland|
