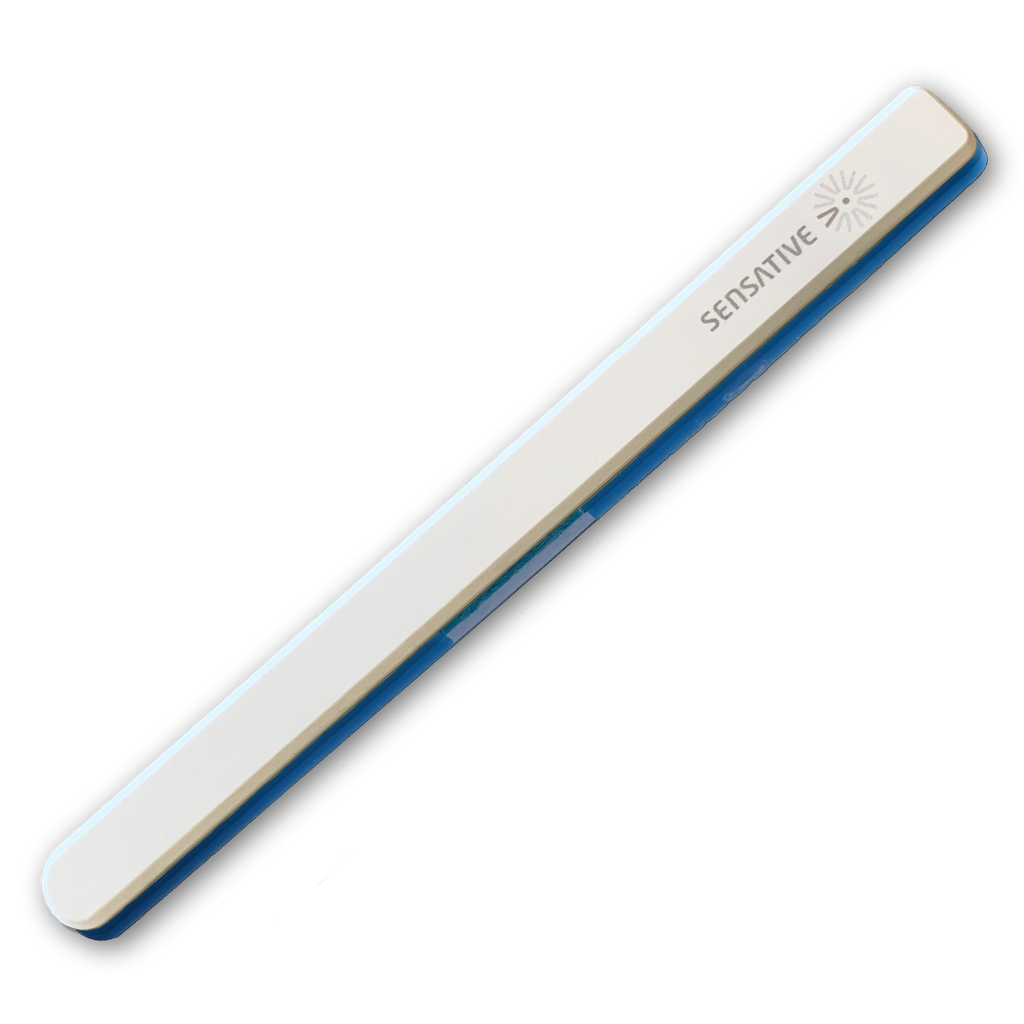

The innovative Strips MS +Drip sensor is an ultra-thin (6 mm) and wireless multi-sensor for LoRaWAN with excellent water leak detection capabilities. Designed for smart IoT applications, such as property monitoring and operations, its slim and sturdy design makes it perfect for concealed mounting in small spaces. The battery life of up to 10 years ensures you can set it and forget it.
In addition to detecting water leaks, the MS +Drip provides temperature data. This multifunctionality means that our sensors can provide more value to your company and its operations as you realize your needs. The main feature of the MS +Drip is to alert you in case of water leakage, and the temperature sensor can alert you if there, for instance, is a risk of freezing pipes. Furthermore, when integrated with a smart building system and other IoT devices, the MS +Drip can automatically turn on/off the water flow or sound an alarm to alert the user about a water leak.
Benefits:
- Blend-in design
- No maintenance (10 years)
- Long-range (10 km)
- Simple installation & mounting
- Low-lifecycle cost (multi-sensor, multi-purpose)
| Application | |
|---|---|
| Application | Water leak detection |
| Benefits | |
| Benefits | Blend-in design, No maintenance (10 years), Long-range (10 km), Simple installation & mounting, Low-lifecycle cost (multi-purpose multi-sensor), Freeze alarm |
| In/Outdoor usage | indoor & sheltered outdoor |
| Features | |
| Sensor | Water leak, Temperature, Open/Close |
| Firmware update over the air (FOTA) | No |
| Connectivity data | |
| Frequency | EU868 - Europe 863-870 MHz or AS923 - Asia 915 - 928 MHz or US915 - US 902 - 928 MHz or AU915 - Australia 915 - 928 MHz or KR920 - South Korea 902 - 928 MHz or IN865 - India |
| Protocols / Connectivity | LoRaWAN |
| LoRaWAN version | V 1.0.4 |
| LoRaWAN class | Class A |
| Antenna | Integrated |
| Sensor data | |
| Temperature accuracy | ± 1 °C/ 1.8 °F @ 0-30 °C/32-86°F |
| Sensor type | Magnetic contact |
| Power supply | |
| Powered by | Battery, Built-in battery (LiMn02), 1,4 Wh (480 mA @ 3V), Non rechargeable battery |
| Mechanical data | |
| Width (mm) | 15 |
| Height (mm) | 6 |
| More information | |
| Manual URL | https://public.yggio.net/docs/lorawan-sensors/strips-multi-sensor/#strips-ms-drip |
| Battery calculator | https://sensative.com/sensors/strips-lora-sensors/sensative-strips-lora-battery-calculator/ |
| Payload decoder | https://sensative.com/sensors/strips-lora-sensors/sensative-strips-lora-ms-resource-center/ |
| Internal | |
| Packaging | Installer or Custom |
| Yggio decoder | Strips MS +Drip +Guard |
| Fortnox Article number | 130100X_193 |
| Manufacturer | Sensative |
| Country of origin | Poland |
| Length (mm) | 195 |
| Box Width (mm) | 38 |
| Box Length (mm) | 206 |
| Box Thickness (mm) | 17 |
| Box Weight empty (g) | 10 |
| Box Weight with content (g) | 37 |
