Strips Multi-sensor +Guard for LoRaWAN
Strips +Guard is a revolutionary magnetic contact sensor for monitoring windows, doors, and valuables.
STRIPS MS +GUARD FOR SMART BUILDINGS

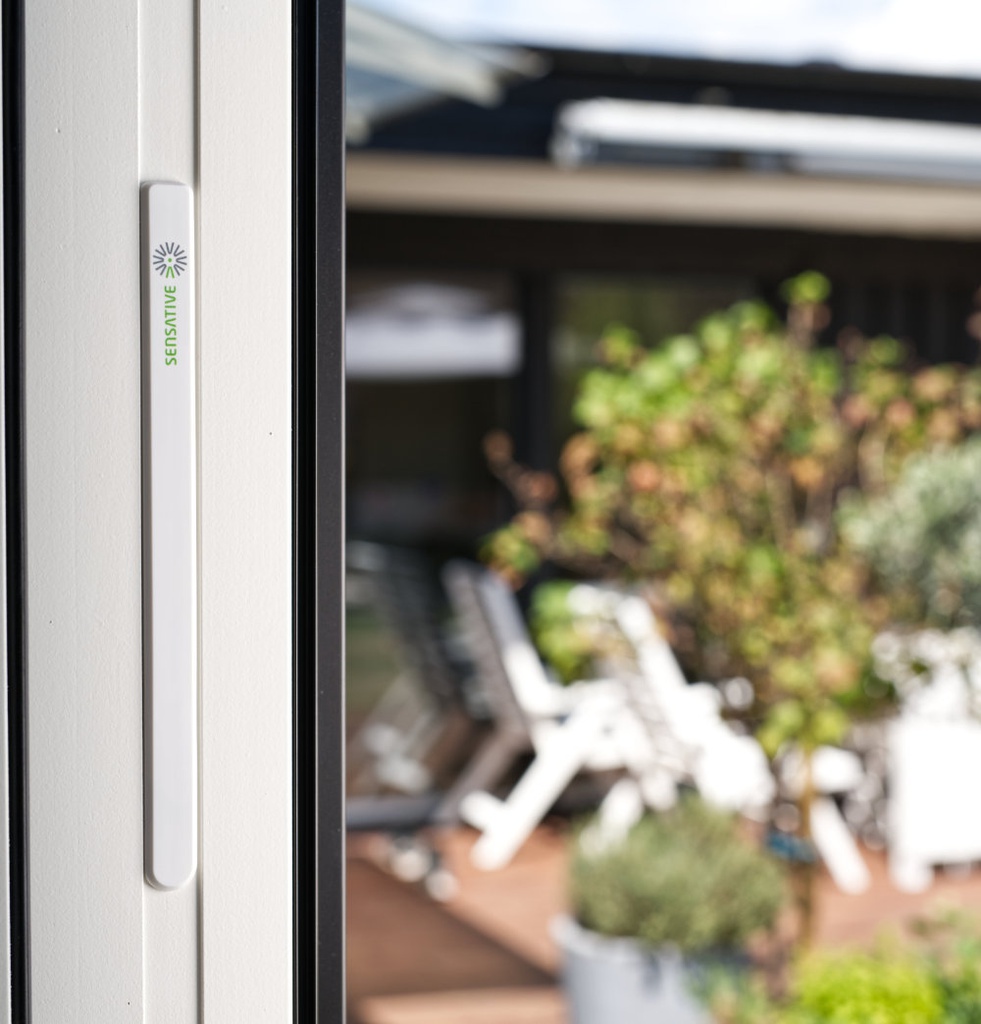

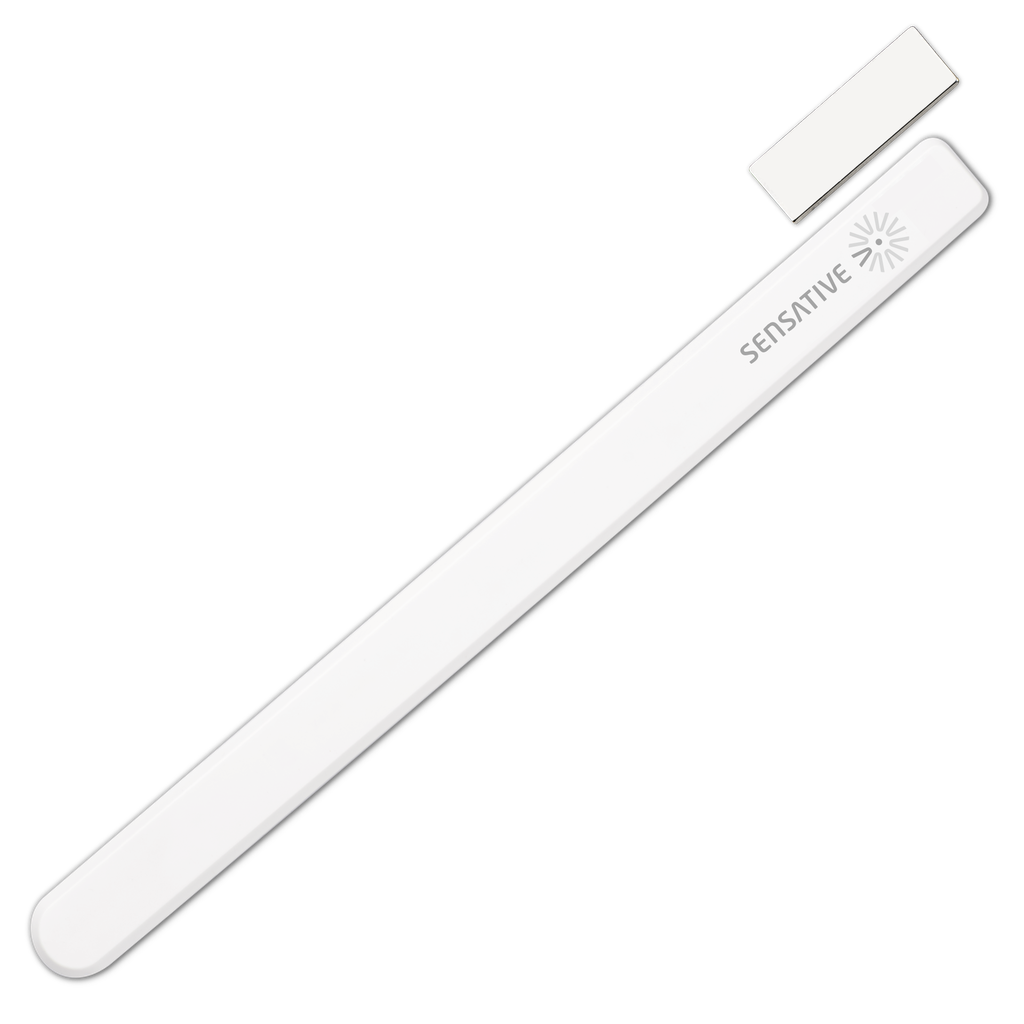

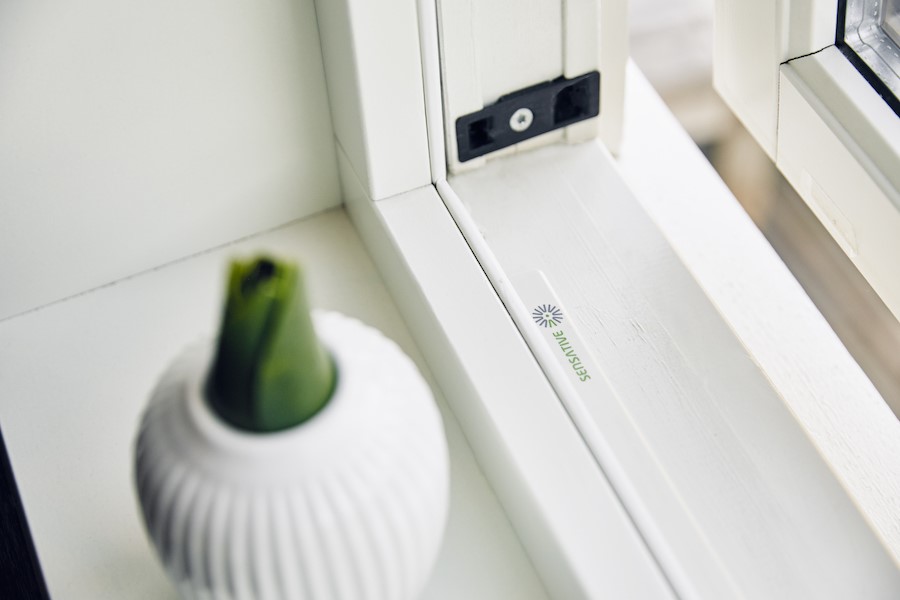

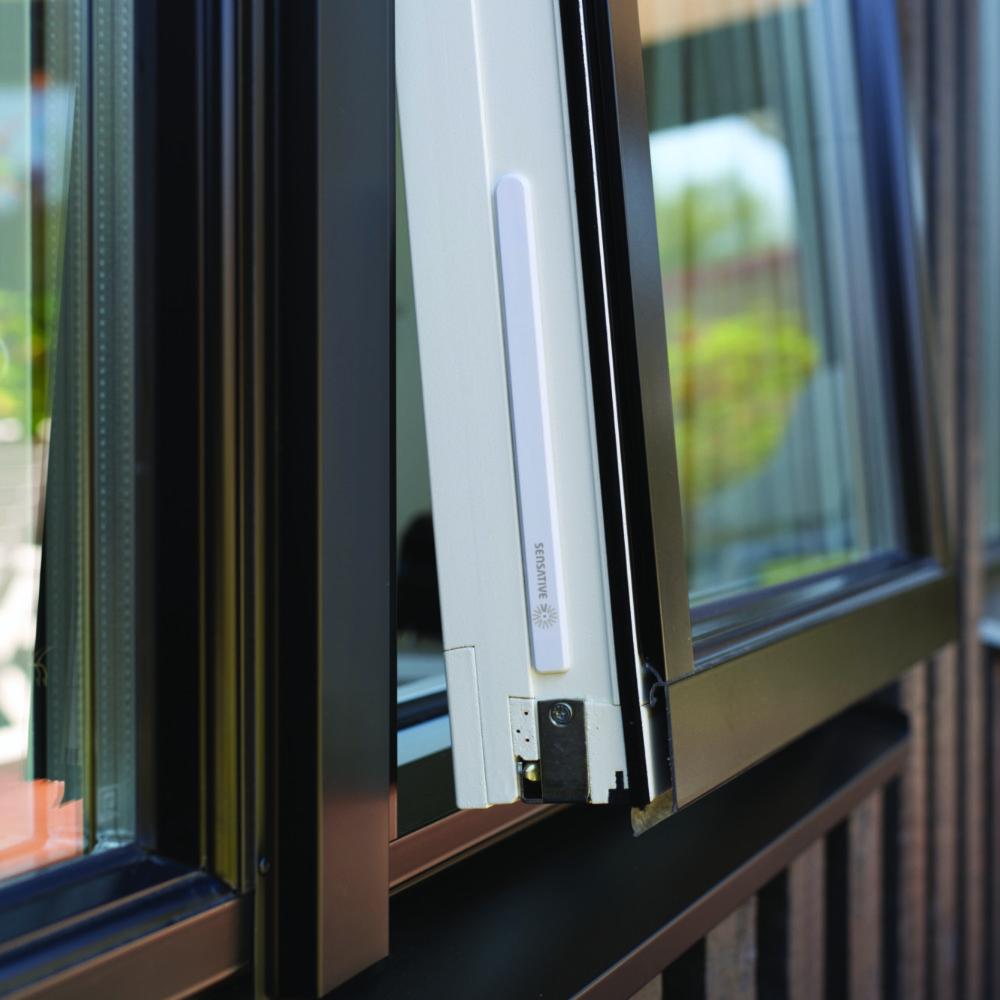

The invisible window & door sensor with up to 10 km range & 10 years battery. Meet Sensative’s MS +Guard, the wireless and ultra-slim (3mm) multi-sensor with a magnetic sensor for monitoring windows & doors, gates, and drawers. With its long battery life of up to 10 years, up to 10 km range, and high quality for both in- & outdoor applications, it is the ideal sensor for any professional IoT applications. Strips MS +Guard is a multi-sensor that can also be used to measure temperature to get a great overview of the climate in or outside of your property.
If you utilize your sensors with a smart building system or our horizontal IoT platform Yggio, you will have a multitude of possibilities thanks to the systems interoperability services. What this means is that you can connect Strips to other IoT devices, systems, and services no matter which technology or protocol, for example, to initiate an alarm if the door is opened or turn off the ventilation when a window has been opened.
The multi-sensor functionality means that the more you realize your own specific needs, the more value our sensors will bring to your company and its operations. Implementing MS +Guard sensors is a great choice for stepping into the modern world of IoT and PropTech, energy optimization, automation, convenience services, and property protection.
Benefits:
- Blend-in design (<3mm)
- No maintenance (10 years)
- Long-range (10 km)

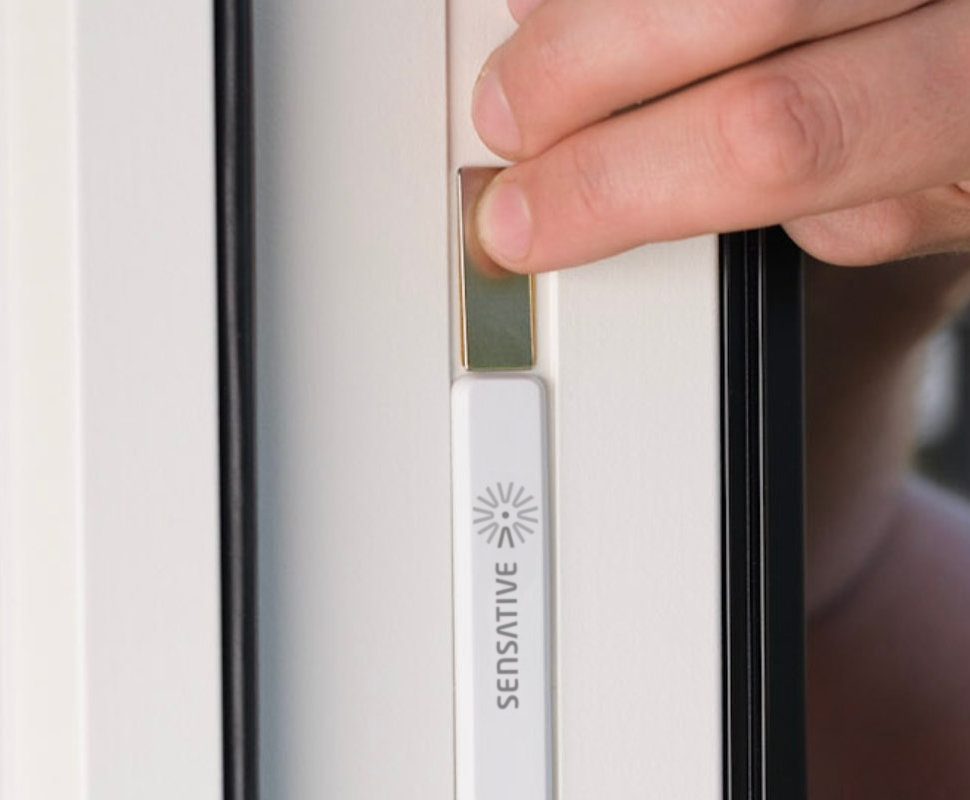

- Simple installation & mounting
- Low-lifecycle cost (multi-sensor, multi-purpose)
| Application | |
|---|---|
| Application | Security, Room sensor, Window and door monitoring |
| Benefits | |
| Benefits | Blend-in design, No maintenance (10 years), Long-range (10 km), Simple installation & mounting, Low-lifecycle cost (multi-purpose multi-sensor) |
| In/Outdoor usage | Indoor & Outdoor |
| Features | |
| Sensor | Open/Close, Temperature |
| Functionality | Tamper alert |
| Firmware update over the air (FOTA) | No |
| Connectivity data | |
| Frequency | EU868 - Europe 863-870 MHz or AS923 - Asia 915 - 928 MHz or US915 - US 902 - 928 MHz or AU915 - Australia 915 - 928 MHz or IN865 - India |
| Protocols / Connectivity | LoRaWAN |
| LoRaWAN version | V 1.0.4 |
| LoRaWAN class | Class A |
| Antenna | Integrated |
| Sensor data | |
| Temperature accuracy | ± 1 °C/ 1.8 °F @ 0-30 °C/32-86°F |
| Sensor type | Magnetic contact |
| Power supply | |
| Powered by | Battery, Built-in battery (LiMn02), 1,4 Wh (480 mA @ 3V), Non rechargeable battery |
| Mechanical data | |
| Width (mm) | 15 |
| Depth (mm) | 195 |
| Height (mm) | 3 |
| More information | |
| Manual URL | https://public.yggio.net/docs/strips/multi-sensor/#strips-ms-guard |
| Battery calculator | https://sensative.com/sensors/strips-lora-sensors/sensative-strips-lora-battery-calculator/ |
| Payload decoder | https://sensative.com/sensors/strips-lora-sensors/sensative-strips-lora-ms-resource-center/ |
| Internal | |
| Yggio decoder | Strips MS +Drip +Guard |
| Fortnox Article number | 130100X_192 |
| Manufacturer | Sensative |
| Country of origin | Poland |
| Packaging | Installer |
