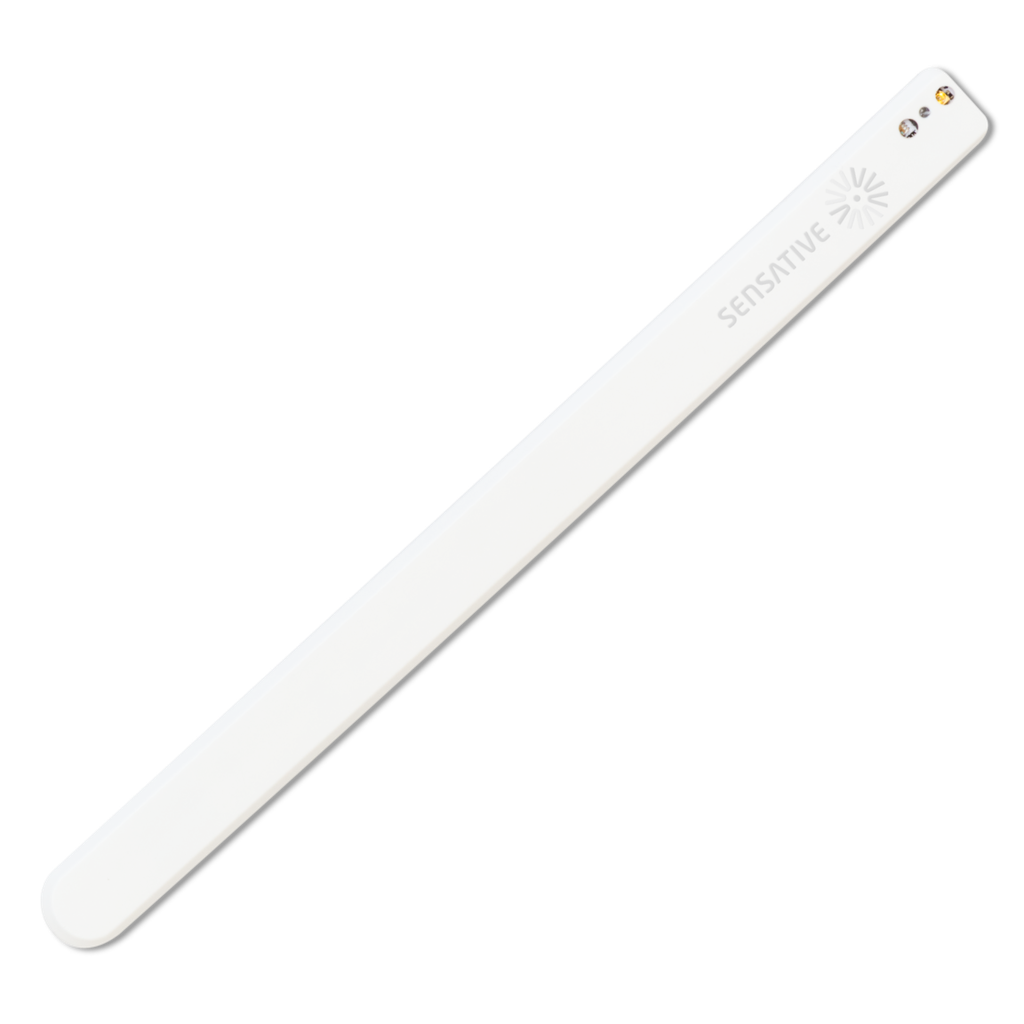

STRIPS PRESENCE DESK OCCUPANCY SENSOR
Strips Presence for LoRaWAN is an ultra-thin (3mm) active IR occupancy sensor designed for smart offices and buildings. Its innovative design allows it to measure objects and people within close range (configurable up to 50 cm) to monitor desk occupancy rate. Mounting is almost invisible with high discretion, making it very suitable for office applications such as hot-desking and similar services.
Strips Presence is also used for asset monitoring, such as paintings and other valuables. Additionally, the included magnetic sensor can monitor open/close of doors, windows, or drawers.
When complemented with +Switch, Strips Presence can be used as a slider button to order cleaning a desk when needed. Strips Presence is part of the Strips LoRaWAN family of sensors that offer a range of up to 10 km, a battery life of up to 10 years, and a straightforward mounting and inclusion process.
Benefits:
- Invisible design (<3mm)
- No maintenance (10 years)
- Long-range (10 km)
- Simple installation & mounting
- Low-lifecycle cost (multi-sensor, multi-purpose)
| Application | |
|---|---|
| Application | Desk occupancy monitoring, Asset management, Presence, Seat monitoring |
| Benefits | |
| Benefits | Invisible design (<3mm), No maintenance (10 years), Long-range (10 km), Simple installation & mounting, Low-lifecycle cost (multi-purpose multi-sensor) |
| In/Outdoor usage | Indoor |
| Features | |
| Sensor | Open/Close, Temperature, Presence |
| Firmware update over the air (FOTA) | No |
| Connectivity data | |
| Frequency | EU868 - Europe 863-870 MHz or US915 - US 902 - 928 MHz or AU915 - Australia 915 - 928 MHz or AS923-1 - Asia 902 - 928 MHz or KR920 - South Korea 902 - 928 MHz or JP920 - Japan or IN865 - India |
| Protocols / Connectivity | LoRaWAN |
| LoRaWAN version | V 1.0.4 |
| LoRaWAN class | Class A |
| Antenna | Integrated |
| Sensor data | |
| Temperature accuracy | ± 1 °C/ 1.8 °F @ 0-30 °C/32-86°F |
| Sensor type | Active IR, Magnetic contact |
| Power supply | |
| Powered by | Battery, Built-in battery (LiMn02), 1,4 Wh (480 mA @ 3V), Non rechargeable battery |
| Mechanical data | |
| Width (mm) | 15 |
| Height (mm) | 3 |
| More information | |
| Manual URL | https://public.yggio.net/docs/lorawan-sensors/strips-presence |
| Battery calculator | https://sensative.com/sensors/strips-lora-sensors/sensative-strips-lora-battery-calculator/ |
| Payload decoder | https://sensative.com/sensors/strips-lora-sensors/sensative-strips-lora-ms-resource-center/ |
| Internal | |
| Yggio decoder | Strips MS +Presence |
| Fortnox Article number | 130200X_19 |
| Manufacturer | Sensative |
| Country of origin | Poland |
| Packaging | Installer |
| Length (mm) | 195 |
| Box Width (mm) | 38 |
| Box Length (mm) | 206 |
| Box Thickness (mm) | 17 |
| Box Weight empty (g) | 10 |
| Box Weight with content (g) | 30 |
