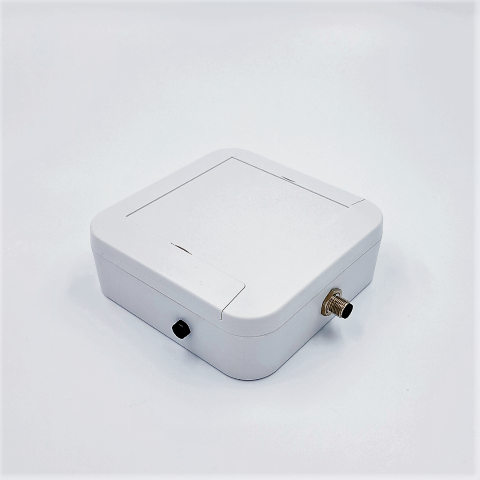

TCR is a compact and very affordable radar traffic counting system with LoRaWAN connectivity. The system includes powerful signal processing that enables directional counting of vehicles with a range up to 10m. With its integrated LoRaWAN modem the device can send counting data in regular intervals over long distances.
Applications
- Online Trafficflow Statistics
- Smart Streetlights
- Bicycle/People Counting
- Ski Counting
Features:
- Bi-Directional counting and categorization of city traffic
- 4 speed classes, user programmable
- Speed range 8-120 km/h (no pedestrians)
- Detection Range 1-10m
- 2 Signalling LEDs protected by lid
- Integrated Antenna
- Integrated Solar charger and battery
- Battery backup for up to 4 days
- Can be used with solar panels (5-20V) or 12VDC power supply
- LoRaWAN 1.0.2 Class A device
- LoRaWAN Regions available including EU868, US915, AS923, AU915
- Full configurable via Win10 Software or LoRaWAN downlinks
- Firmware updates over USB
- Waterproof (IP65) and UV resistant ASA enclosure
- Wall or pole-mounting
| Application | |
|---|---|
| Application | Vehicle monitoring, Traffic management |
| Benefits | |
| In/Outdoor usage | Outdoor |
| Features | |
| Sensor | Radar 60 GHz |
| Accessories | Solar charger kits, 12VDC power supply |
| Connectivity data | |
| Antenna | Integrated or External antenna |
| LoRaWAN version | v 1.0.2 |
| LoRaWAN class | Class A |
| Sensor data | |
| Sensitivity | Detection range 1 - 10 meters |
| Power supply | |
| Powered by | DC Power or Solar power |
| Powered by | Battery backup |
| Mechanical data | |
| Width (mm) | 760 |
| Depth (mm) | 196 |
| Height (mm) | 182 |
| More information | |
| Manual URL | https://parametric.ch/docs/tcr/tcr_manual_v13x |
| Internal | |
| Yggio decoder | parametrics-tcr-ls |
| Fortnox Article number | SEN-30_048 |
| Vendor article number | TCR-EU868-HSS |
| URL | https://docs.pmx.systems/tcr/quickstart/g2/tcr-sli/ |
| Manufacturer | PMX systems |
