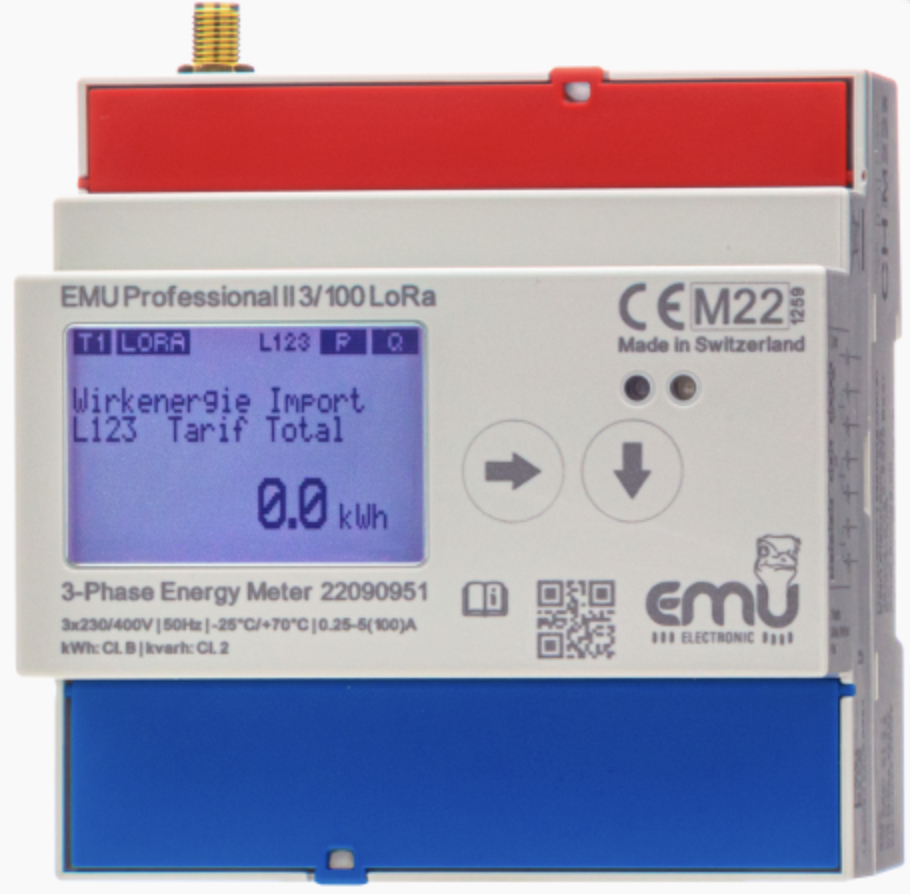

EMU Professional II 3/100 LoRa

Our 3-phase power meter EMU Professional II 3/100 LoRa is the perfect solution for industrial and commercial energy management and monitoring. It is designed for direct connection up to 100A and is equipped with a LoRa wireless interface, making it easy to remotely monitor and manage energy consumption.

The LoRa wireless interface allows for easy integration with existing systems and provides real-time access to energy consumption data. This makes it ideal for use in remote or difficult-to-reach locations, as well as in applications where wired connections are not practical.

This version has an internal LoRa antenna and SMA antenna connector for external antenna.

Our 3-phase power meter EMU Professional II 3/100 LoRa is MID (Measuring Instruments Directive) certified, meaning it is suitable for billing and metering purposes. This guarantees its accuracy and reliability, making it an ideal choice for energy management in industrial and commercial settings.

LoRa power meter features

• Bidirectional three-phase power meter with LoRa interface
• Built in LoRa interface and antenna
• Wireless LoRa interface
• 3x230/400V
• Direct connection up to 100A
• MID B+D, for billing purposes
• Accuracy class B (1%)

LoRa interface
To ensure a stable, high-performance connection to the LoRaGateway, the LoRa interface continuously adapts the optimal transmission and reception parameters.
For easier integration of the electricity meter, the status of the LoRa network connection can be accessed on the display at any time.

• Frequency band EU 863-870MHz
• Type: Class C device
• Two-way communication.
• LoRa interface is always ready to receive (Class C).
• The LoRa interface has a signal strength of 14dbm.

Note:  
When operating the LoRa power meter EMU Professional II 3/100 on a LoRa network which does not support Class C devices, the power meter EMU Professional II will work as a Class A device.

Installation:

On 35mm DIN-rails or with front installation frame
