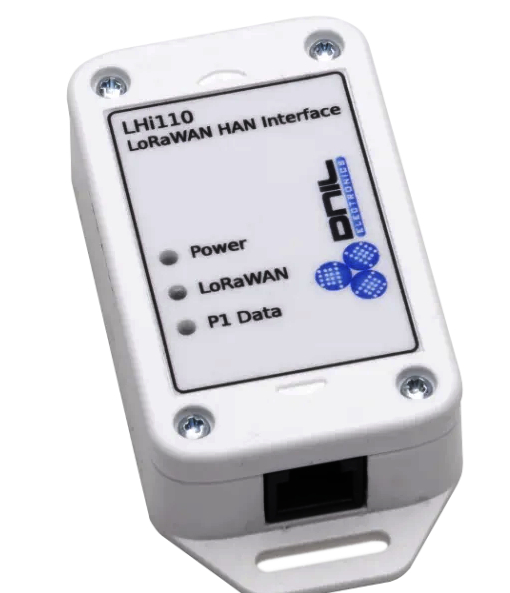

LHi110 transports data from electricity meters equipped with a “HAN-port” over LoRaWAN. HAN-port, also known as a P1-port, is required on all new electricity meters installed in the Nordic countries and some other European countries. HAN-port emits meter data at least every 10 seconds which LHi110 converts and transmits over a standard LoRaWAN IoT network. Selection of meter data and statistics calculation is configurable via LoRaWAN downlink to support different usage scenarios. Meter data related to both import and export (production) of electricity are available, as well as active and reactive components.
LHi110 is normally supplied directly from the electricity meter via HAN-port, optionally an internal connector available for external power supply.
Features
- Support “P1” data interface towards smart electricity meters
- Powered via “P1” data interface or separate internal connector
- Hardware crypto co-processor for secure key storage. Encrypted FW.
- Internal LoRa antenna
- LoRaWAN EU868 version 1.0.2 device
- LoRaWAN Class C receiver
- LED status indication for power, LoRa and P1 data interface states
- Programmable report contents and report interval via LoRa downlink
| Application | |
|---|---|
| Application | energy measurement |
| Features | |
| User interaction | LED |
| Connectivity data | |
| Protocols / Connectivity | LoRaWAN |
| LoRaWAN version | v 1.0.2 |
| LoRaWAN class | Class C |
| Antenna | Integrated |
| Internal | |
| Manufacturer | DNIL |
