STRIPS DRIP OIL LoRaWAN
Strips
LoRaWAN Drip Oil is an ultra-thin (4 mm) wireless sensor designed for early
detection and classification of liquid leaks in industrial environments. It is
ideal for monitoring machinery, hydraulic systems, and technical installations
where understanding the type of leakage is critical.
The sensor features a patent-pending dual sensing technology that detects leaks and distinguishes between water and other liquids.
An external capacitive sensor detects the presence of any liquid, while a foil-integrated capacitive sensor—combined with a liquid-absorbing layer—reacts specifically to non-water (viscous) liquids such as oil. This enables reliable differentiation between water-based and non-water leaks.

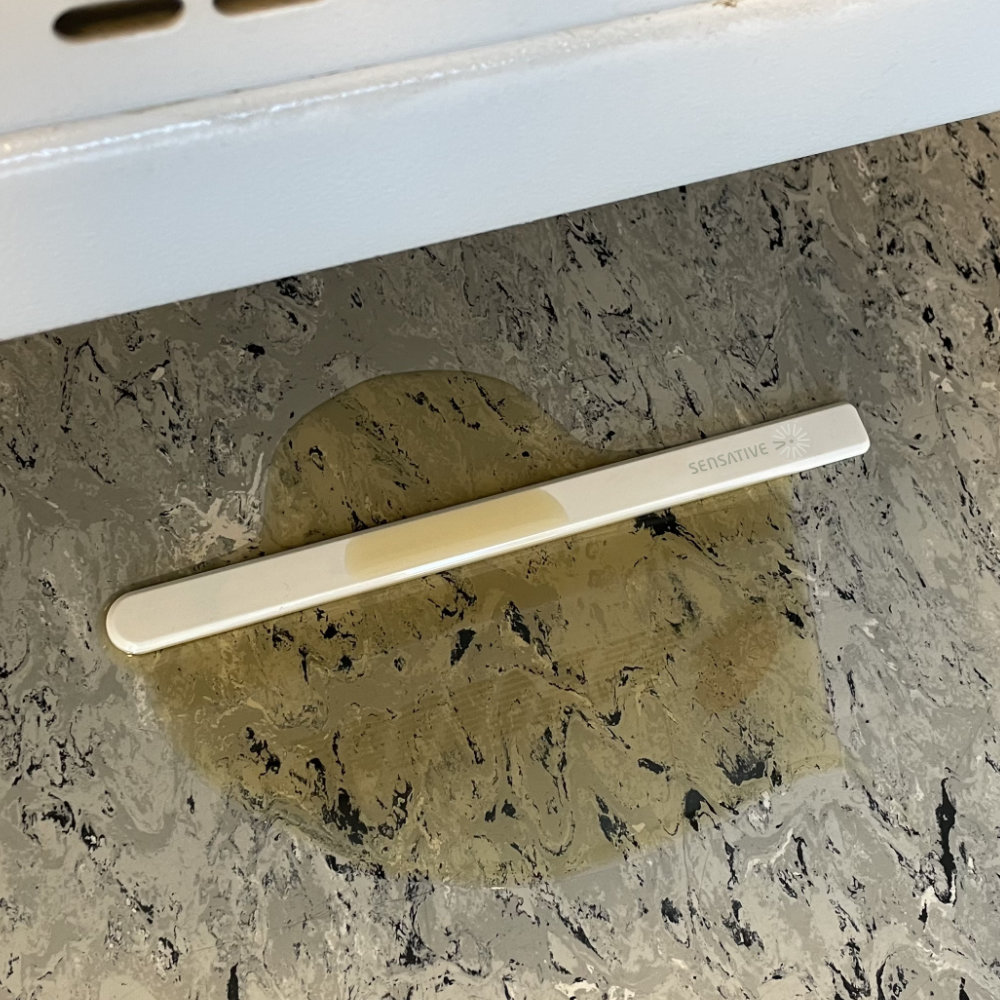

Its slim and robust design allows installation on flat surfaces such as floors, trays, or beneath equipment and piping—detecting leaks at an early stage, even from the first drops.
With a battery life of 10+ years – designed for long-term, maintenance-free operation, Strips Drip Oil is built for reliable performance in demanding environments.
Typical use cases
- Monitoring of hydraulic systems and machinery
- Detection of oil and other viscous liquid leaks
- Leak detection under pipes, tanks, and industrial equipment
- Machine rooms and technical installations
- Protection of critical infrastructure
Key advantages
- Patent-pending liquid classification – distinguishes between water and non-water liquids
- Dual sensing technology – detects any liquid and identifies its type
- Early warning – detects leaks from the first drops to prevent damage
- 10+ years battery life – designed for long-term, maintenance-free operation
- Discreet yet robust design – ultra-thin and easy to install on flat surfaces
- Reliable in industrial environments – built for demanding use cases
Installation
Strips Drip Oil can be easily mounted on flat surfaces and installed using Sensative +Clip, enabling flexible and secure placement in a wide range of environments.
Service & maintenance
The liquid-absorbing foil is designed to react to non-water liquids and should be replaced after exposure, as it becomes contaminated by oil or other substances.
Rev B, 2026-03-18
| Application | |
|---|---|
| Application | Water leak detection, Oil leak detection, Any liquid detection |
| Benefits | |
| Benefits | Blend-in design, No maintenance (10 years), Long-range (10 km), Simple installation & mounting, Low-lifecycle cost (multi-purpose multi-sensor) |
| In/Outdoor usage | indoor & sheltered outdoor |
| Features | |
| Sensor | Capacitive liquid sensor, Temperature, Water leak, Open/Close |
| Firmware update over the air (FOTA) | No |
| Connectivity data | |
| Frequency | EU868 - Europe 863-870 MHz or US915 - US 902 - 928 MHz or AU915 - Australia 915 - 928 MHz or AS923-1 - Asia 902 - 928 MHz or IN865 - India |
| Protocols / Connectivity | LoRaWAN |
| LoRaWAN version | V 1.0.4 |
| LoRaWAN class | Class A |
| Antenna | Integrated |
| Sensor data | |
| Temperature accuracy | ± 1 °C/ 1.8 °F @ 0-30 °C/32-86°F, ± 1 °C/ 1.8 °F @ 0-30 °C/32-86°F |
| Sensor type | Magnetic contact |
| Power supply | |
| Powered by | Battery, Built-in battery (LiMn02), 1,4 Wh (480 mA @ 3V), Non rechargeable battery |
| Mechanical data | |
| Weight (g) | 11 |
| Width (mm) | 15 |
| Height (mm) | 4 |
| More information | |
| Manual URL | https://public.yggio.net/docs/lorawan-sensors/strips-multi-sensor/#strips-ms-oil |
| Battery calculator | https://sensative.com/sensors/strips-lora-sensors/sensative-strips-lora-battery-calculator/ |
| Payload decoder | https://sensative.com/sensors/strips-lora-sensors/sensative-strips-lora-ms-resource-center/ |
| Internal | |
| Yggio decoder | Strips MS +Drip +Guard |
| Fortnox Article number | 130100X_194 |
| Manufacturer | Sensative |
| Country of origin | Poland |
| Packaging | Installer |
| Length (mm) | 195 |
| Box Width (mm) | 38 |
| Box Length (mm) | 206 |
| Box Thickness (mm) | 17 |
| Box Weight empty (g) | 10 |
| Box Weight with content (g) | 32 |
