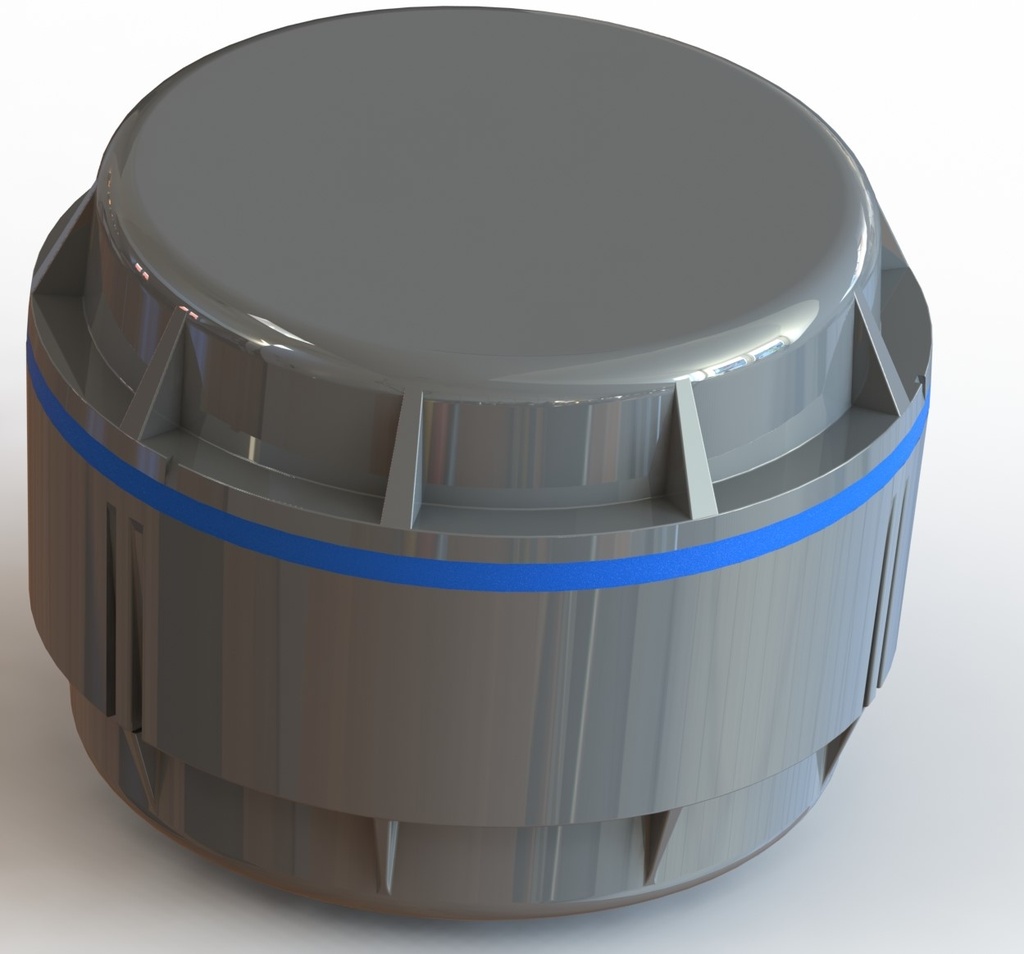

Puck Radar LoRaWAN
Puck Radar is an ultra-low power radar sensor designed for presence detection, distance measurement, and level monitoring across a wide range of applications. Using advanced radar technology, it measures reflected signals over distance and reports accurate data based on configurable parameters.
With a radar range of up to 6.8 meters and flexible algorithms, it can be adapted for applications such as parking detection, tank level monitoring, waste management, and snow depth measurement.
Built for demanding environments, Puck Radar features a sealed enclosure and robust design, enabling reliable operation in outdoor and industrial conditions.
Typical use cases
- Parking occupancy detection
- Tank, silo, and septic level monitoring
- Waste container monitoring
- Snow depth measurement
- Distance and presence detection
Key advantages
- Radar-based sensing independent of light and environmental conditions
- Up to 6.8 meter detection range
- Configurable algorithms for multiple applications
- 10 years battery life for long-term operation
- Replaceable battery (2.1 Ah)
- Easy configuration via NFC using an Android smartphone
- Ruggedized design for outdoor use
Condensation protection
Puck Radar is designed for sealed outdoor environments where condensation may occur.
The device includes a silica gel solution that absorbs internal moisture, combined with a temperature and humidity sensor that monitors the internal environment.
If moisture levels increase due to condensation, the sensor can trigger an alert indicating that the silica gel needs replacement.
Radar configurations
Puck Radar is available in different variants depending on beam angle:
- Standard housing (60° field of view)
- Narrow lens housing (10° field of view)
Positioning
Puck Radar supports Wi-Fi-based positioning by scanning nearby Wi-Fi MAC addresses, with location calculated via a cloud-based location service.
This enables positioning in indoor or GPS-denied environments.
This functionality requires a compatible cloud service such as Sensative Yggio.
Installation
Puck Radar can be mounted using dedicated mounting plates, available as accessories.
Rev B, 2026-03-18
| Application | |
|---|---|
| Application | Parking space monitoring, Filling level, Waste management, Distance measurements, Occupancy, Seat monitoring, Septic Tanks, Street wells |
| Benefits | |
| Benefits | No maintenance (10 years), Long-range (2 km), Sturdy & waterproof, High accuracy, Location-aware, Built-in data memory |
| In/Outdoor usage | Indoor & Outdoor |
| Features | |
| Sensor | Radar 60 GHz, Temperature, Geolocation, Humidity, Humidity |
| Accessories | Mounting kits |
| Configuration | LoRaWAN OTAA, NFC |
| Geopositioning | WIFI 2.4 GHz |
| Connectivity data | |
| Frequency | US (915 MHz) or EU868 - Europe 863-870 MHz |
| Protocols / Connectivity | LoRaWAN, NFC |
| LoRaWAN version | V 1.0.4 |
| LoRaWAN class | Class A |
| Sensor data | |
| Radar beam | Standard lens: +/- 60° beam (30 mm height) or Narrow Lens +/- 10° |
| Temperature accuracy | ± 2 °C/ 3.6 °F @ 0-30 °C/32-86°F, +/- 0.2 °C |
| Sensor circuit | Acconeer A111 |
| Radar frequency | 60 GHz |
| Radar range | 0.2 - 6.8 m |
| Radar accuracy | cm |
| Power supply | |
| Powered by | Lithium Thionyl Chloride battery, Replaceable battery, 2.1 Ah |
| Mechanical data | |
| Weight (g) | 38 (Standard 60° lens), 43 (Narrow 30° lens) |
| Height (mm) | 30 (standard lens), 45 (narrow lens) |
| Diameter (mm) | 45 |
| Internal | |
| Manufacturer | Sensative |
| Country of origin | Poland |
