Square Tracker [L] for LoRaWAN

https://shop.sensative.com/web/image/product.template/4101/image_1920?unique=63432a6

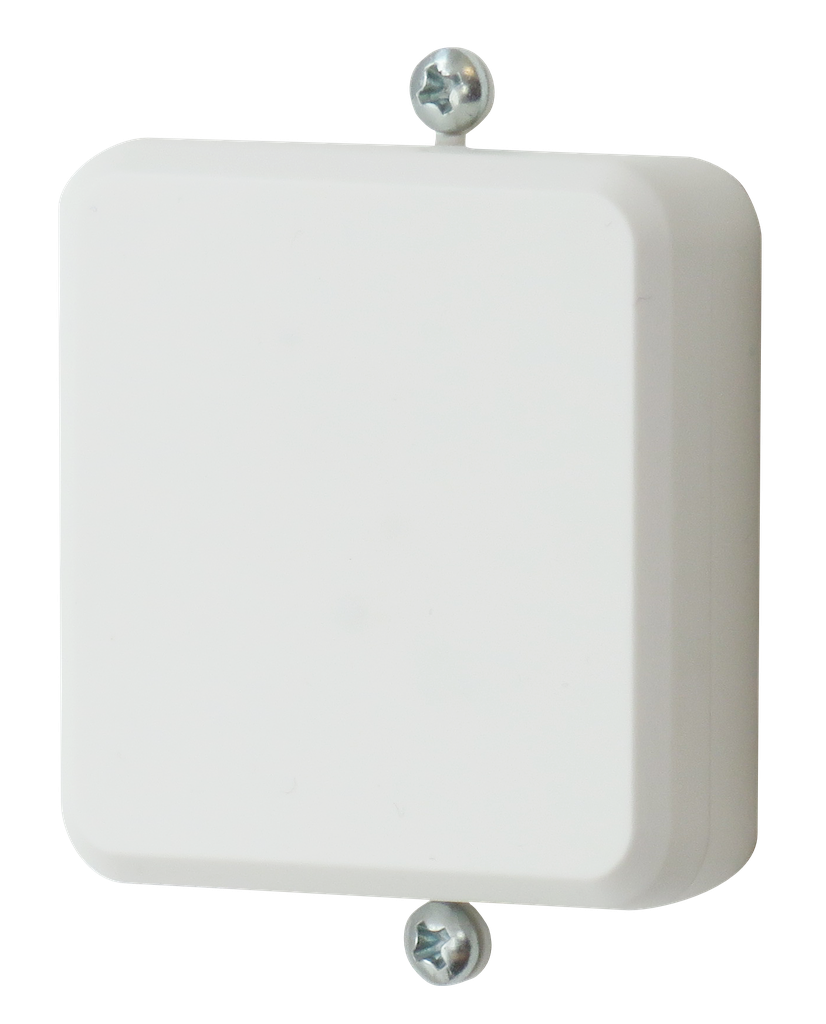

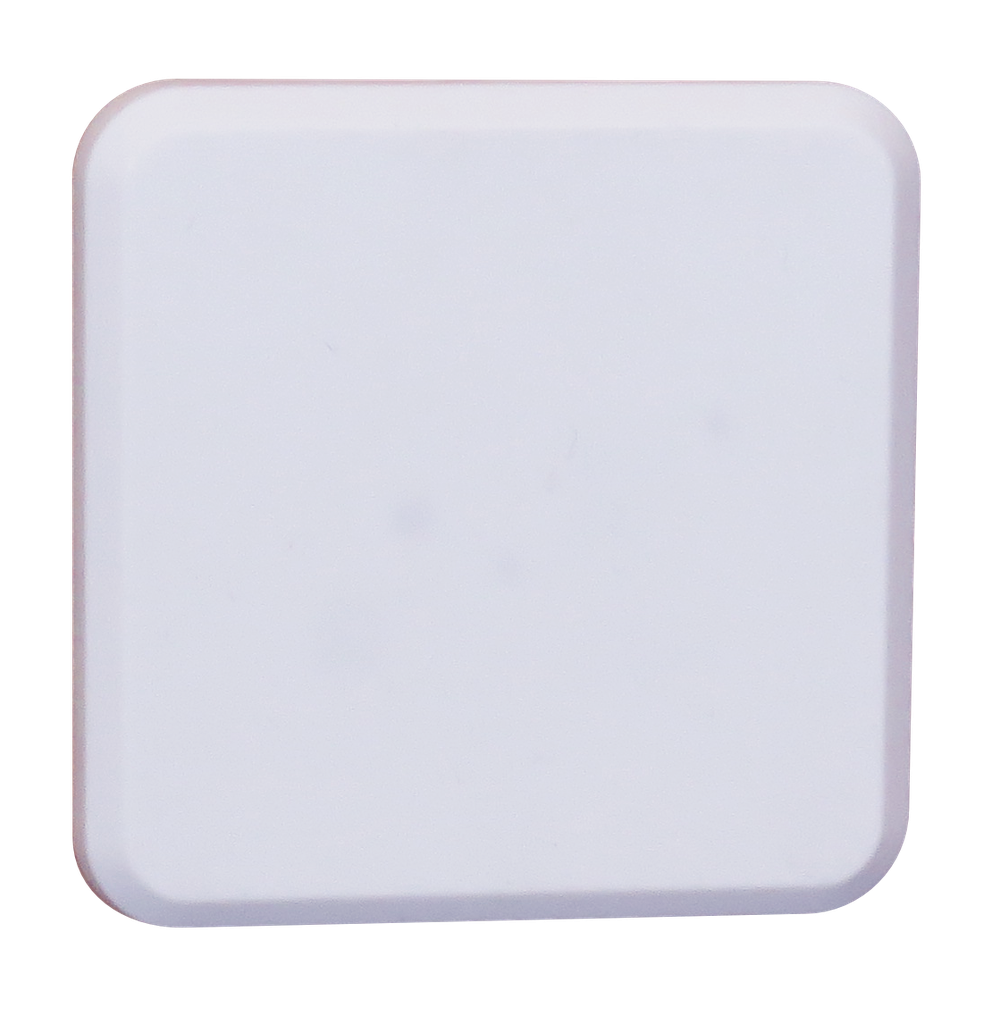

Compact Indoor/Outdoor asset tracker with extreme battery life

This product is no longer available.


Share :


This compact sensor provides indoor and outdoor locations, and like all Sensative products, it is designed with precision and longevity in mind. For instance, the position calculation is performed in the cloud (rather than on-device) to save significant amounts of power.

The custom battery provides many years of problem-free operations. In contrast, most battery-powered asset-tracking devices last around a year before they need to be recharged or changed. Replacing batteries in hundreds or thousands of devices can be expensive, work-intensive, and lead to downtime, increasing overall operation and device ownership costs.

The Square Tracker comes in three different versions. The ultra-compact slim version is merely 7 mm thick but yet provides over ten years of battery life. The medium and large versions are 15 mm thick and carry even larger batteries.

Our tracking sensors are designed to be user-friendly, easy to include in most LoRaWAN platforms, and configurable over the air or NFC. They also provide extra value by monitoring the temperature of the asset and its surroundings, highly interesting data in many applications. By including temperature, you save on the need for an extra sensor that would otherwise be required.

Application

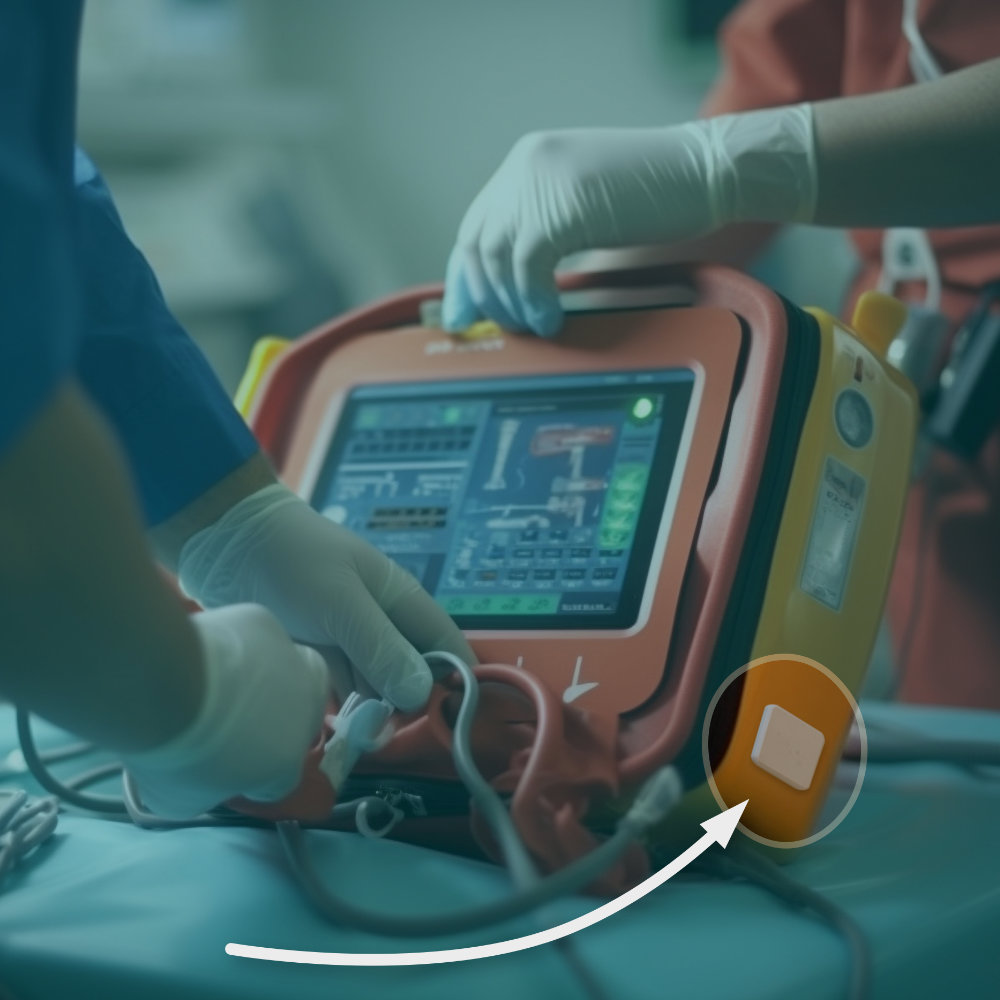

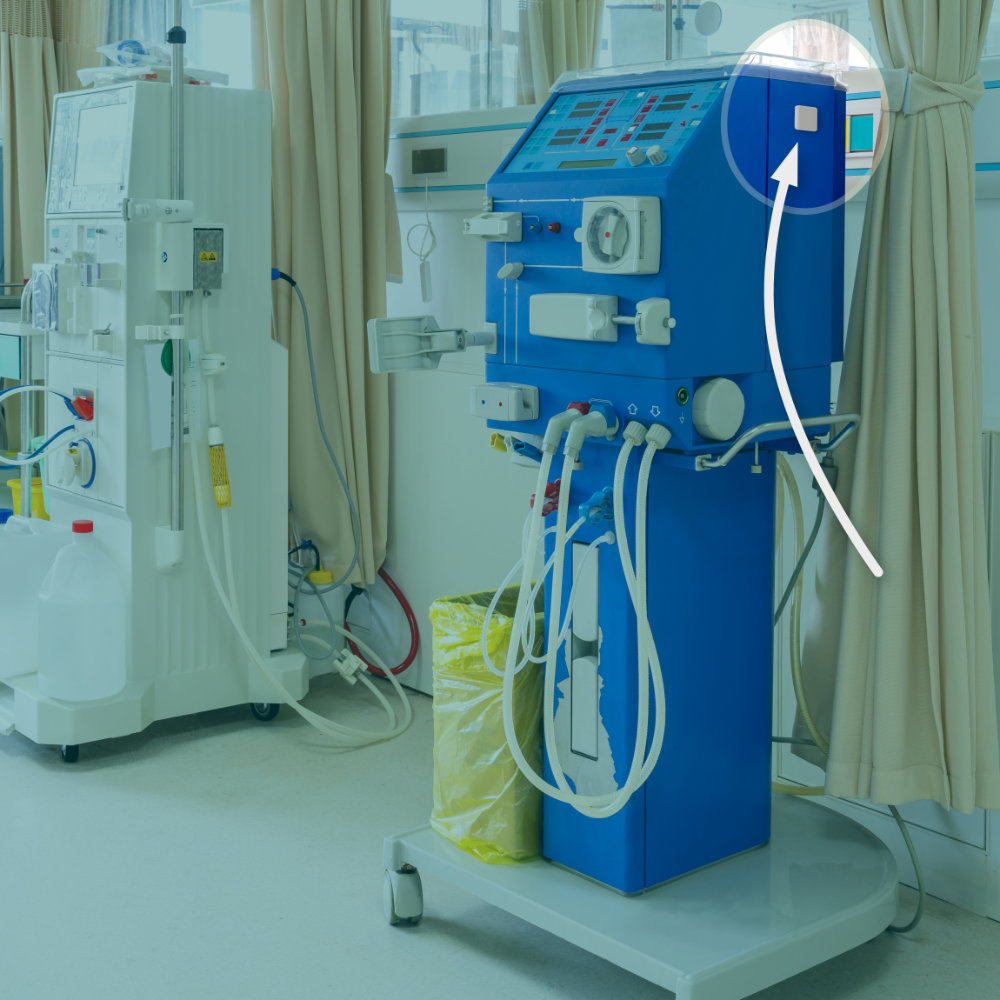

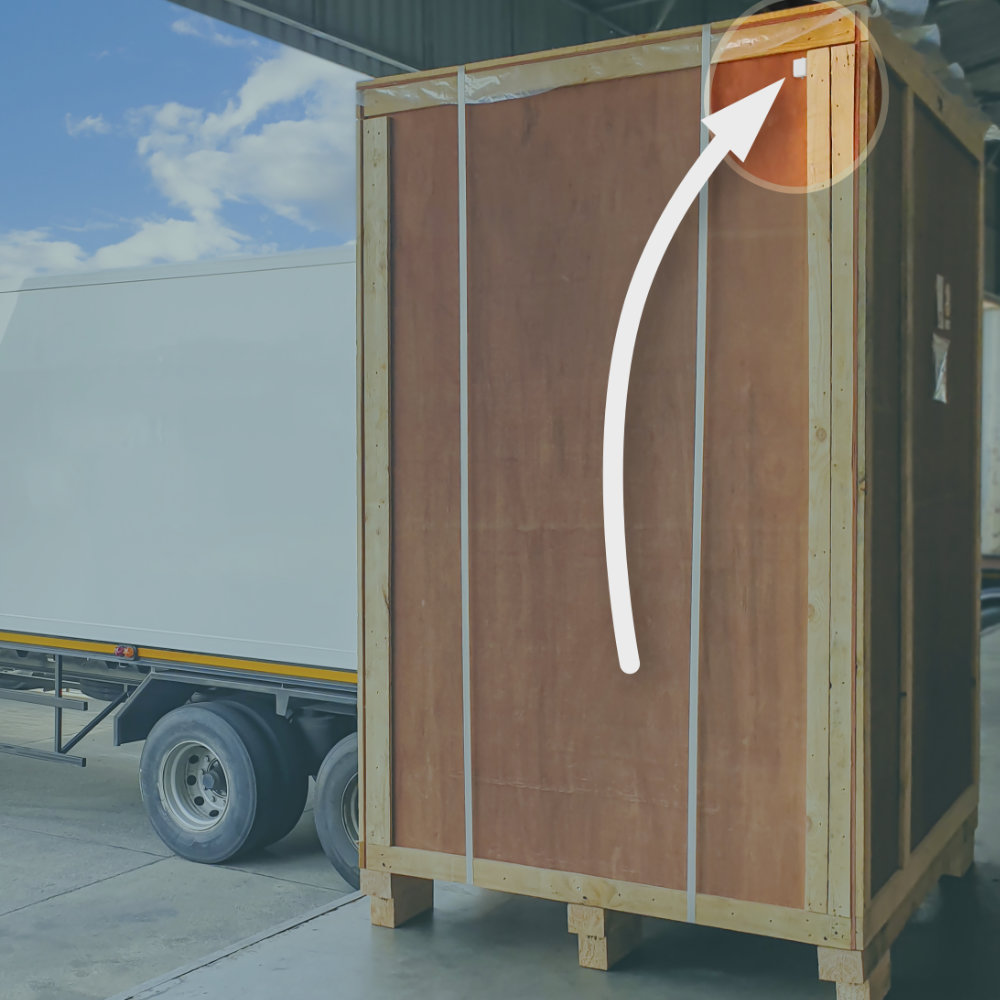

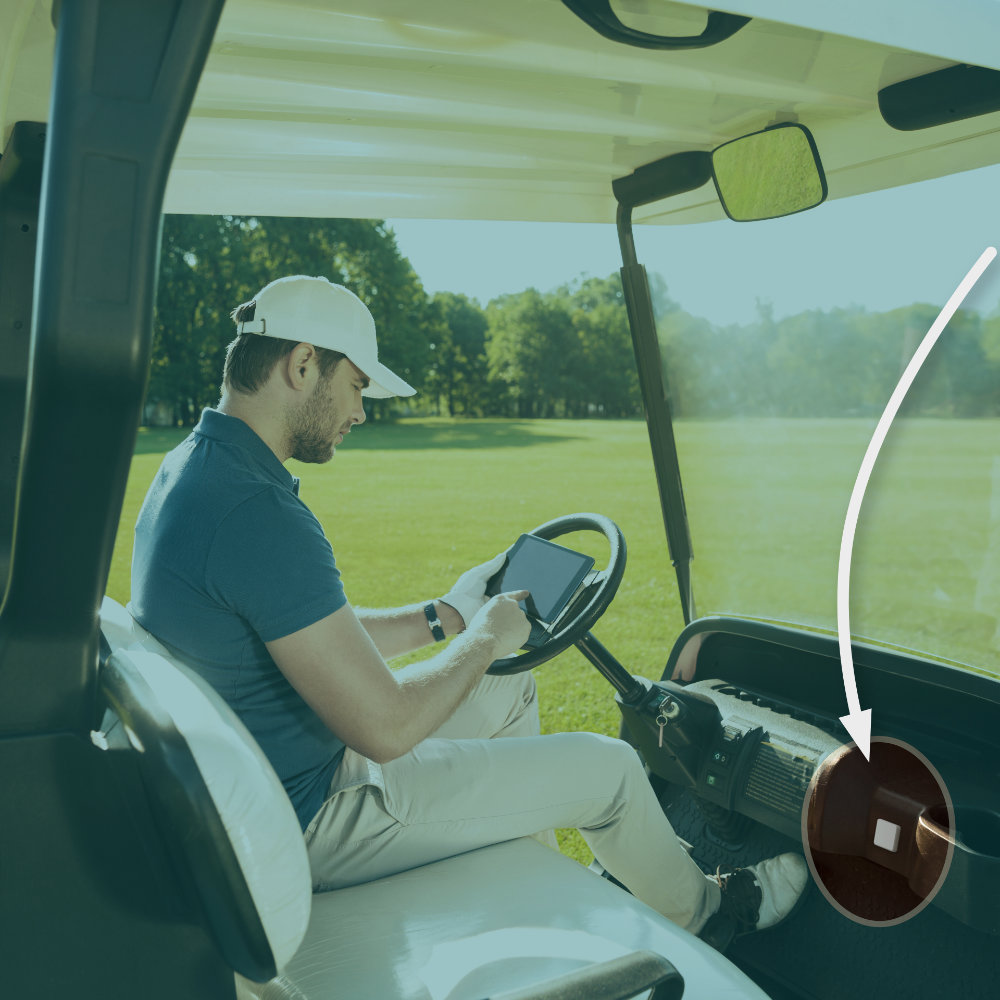

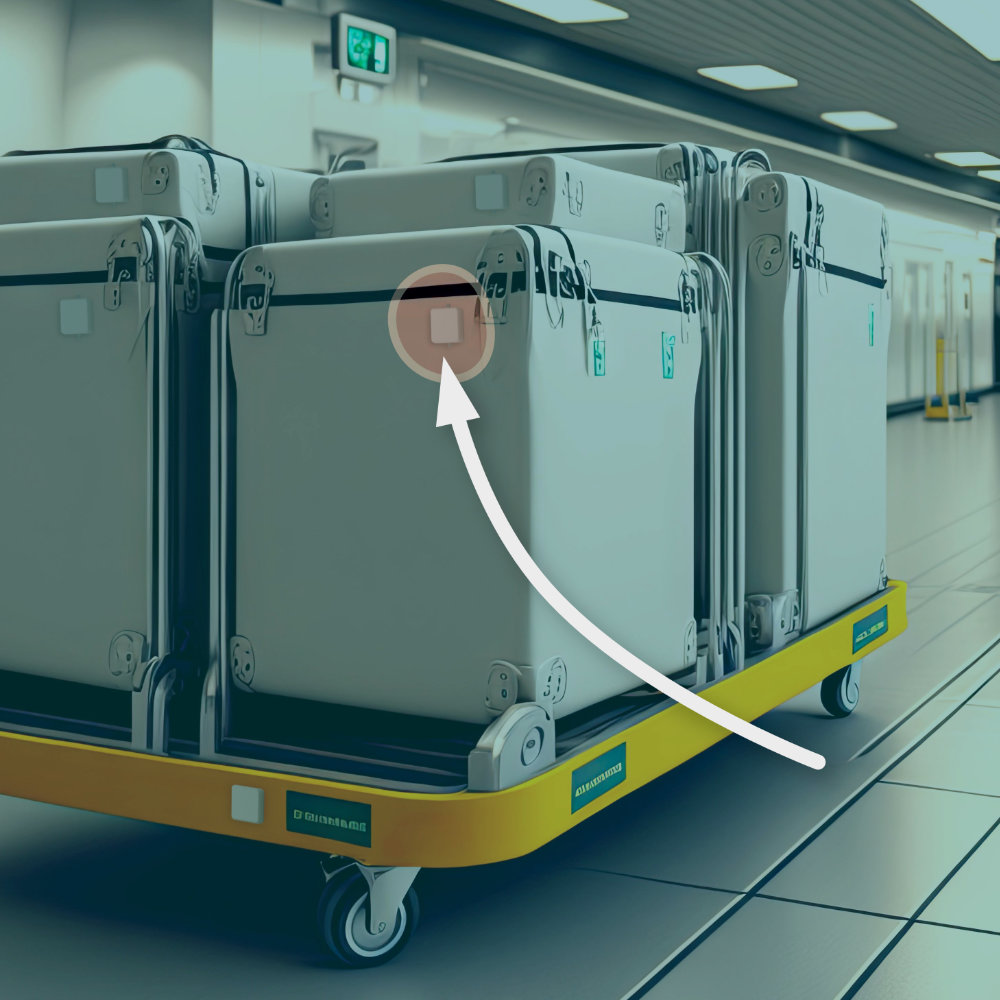

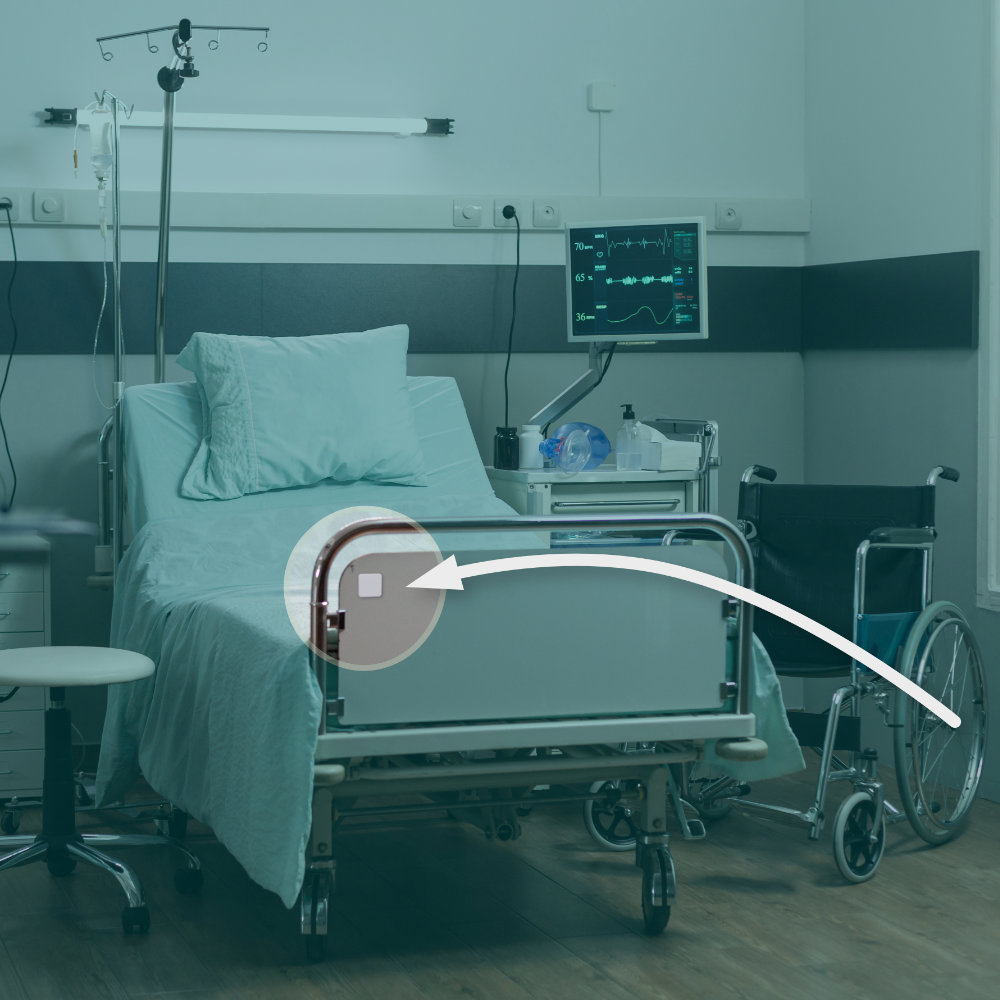

Application Tracking, Asset management, Vehicle monitoring
Benefits
Benefits Simple installation & mounting, 10+ years battery life, Motion controlled, Air pressure sensor (enabling 3D positioning), Location-aware, Long-range (2 km)
In/Outdoor usage Indoor & Outdoor
Features
Sensor Geolocation, Temperature, 3D accelerometer, Air pressure
Accessories Cloud Positioning Service
Configuration LoRaWAN OTAA, NFC
Geopositioning WiFi, GNSS (GPS & BeiDou)
Connectivity data
Frequency EU (868 MHz) or US (915 MHz)
Protocols / Connectivity LoRaWAN, NFC
LoRaWAN version V 1.0.4
LoRaWAN class Class A
Sensor data
Temperature accuracy ± 1 °C/ 1.8 °F @ 0-30 °C/32-86°F
Power supply
Powered by LiMnO2, 6 Ah, Non-replaceable battery
Operating Conditions
IP Class 64
Operating range -20 - +60 °C
Mechanical data
Width (mm) 58
Depth (mm) 15
Height (mm) 58
Internal
Yggio decoder Unknown
Manufacturer Sensative
Country of origin Poland
