The LoRaWAN radar sensor for parking lot control or distance measuring
- Up to 6.8 m radar range
- Temperature sensor
- Up 10 years battery life
- LoRaWAN version 1.0.4
- LoRaWAN OTA configuration
- Configurable radar algorithms for various applications
- NFC for configuration & firmware upgrades

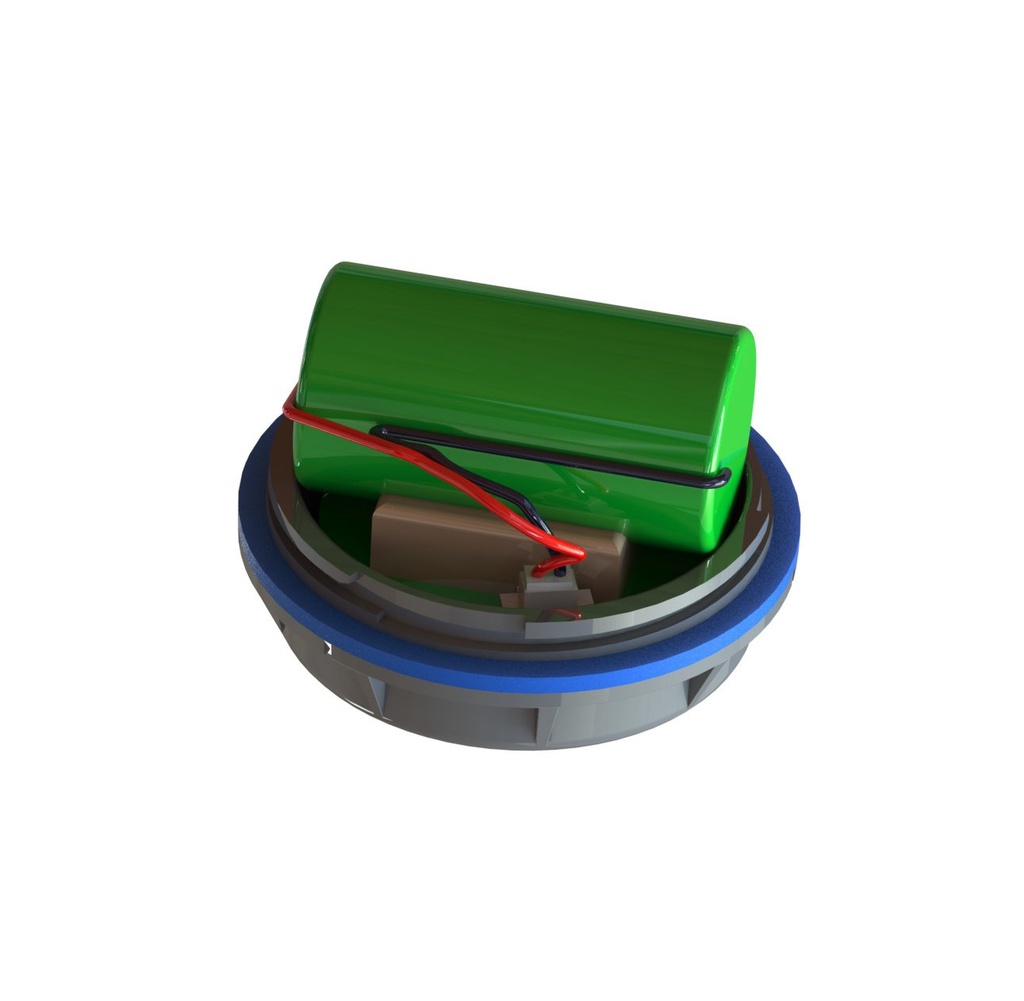

- Replaceable 2.1 Ah battery
- IP67 with replaceable battery

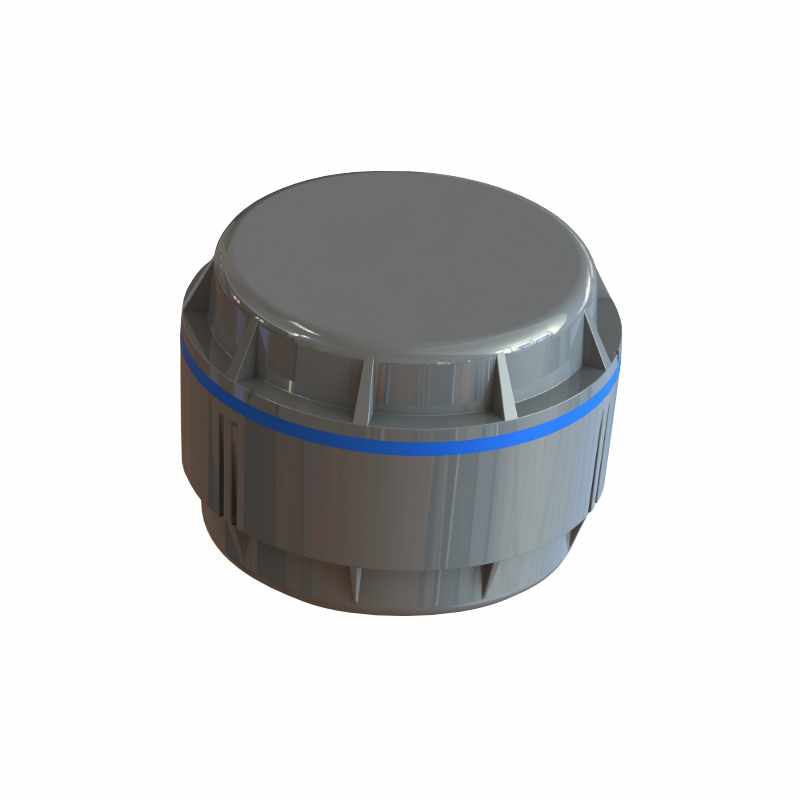

Puck Radar is an exceptionally versatile, ultra-low power radar sensor designed for LoRaWAN. It's well-suited for a multitude of applications, including detecting presence, measuring distance to objects, and determining levels in tanks, as well as assessing snow depth.
It captures the intensity of the radar signal reflected from various distances, processes the data, and reports the findings based on set parameters. Puck Radar comes equipped with multiple methods tailored for common scenarios adaptable for a broad range of applications such as parking, waste management, silo & septic tank levels, distance metering, seat occupancy or snow level metering.
Puck Radar sensor can be ordered with two different housings supporting different user needs:
Puck Radar 60/Standard housing: The radar will detect objects/levels within a +/- 60 ° angle.
Puck Radar 30/Narrow lens housing: The radar will detect objects/levels within a +/- 30 ° angle.
Puck Radar 30/Narrow lens suits most applications.
Puck Radar can be equipped with a Radar Beam Former to further decrease the width and height of the Radar Beam. Contact Sensative for more information.

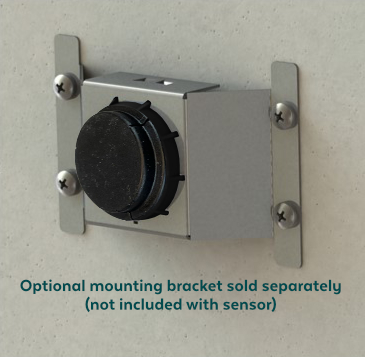

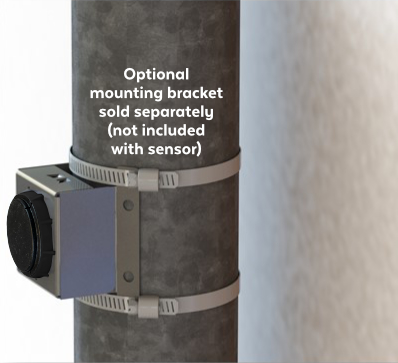

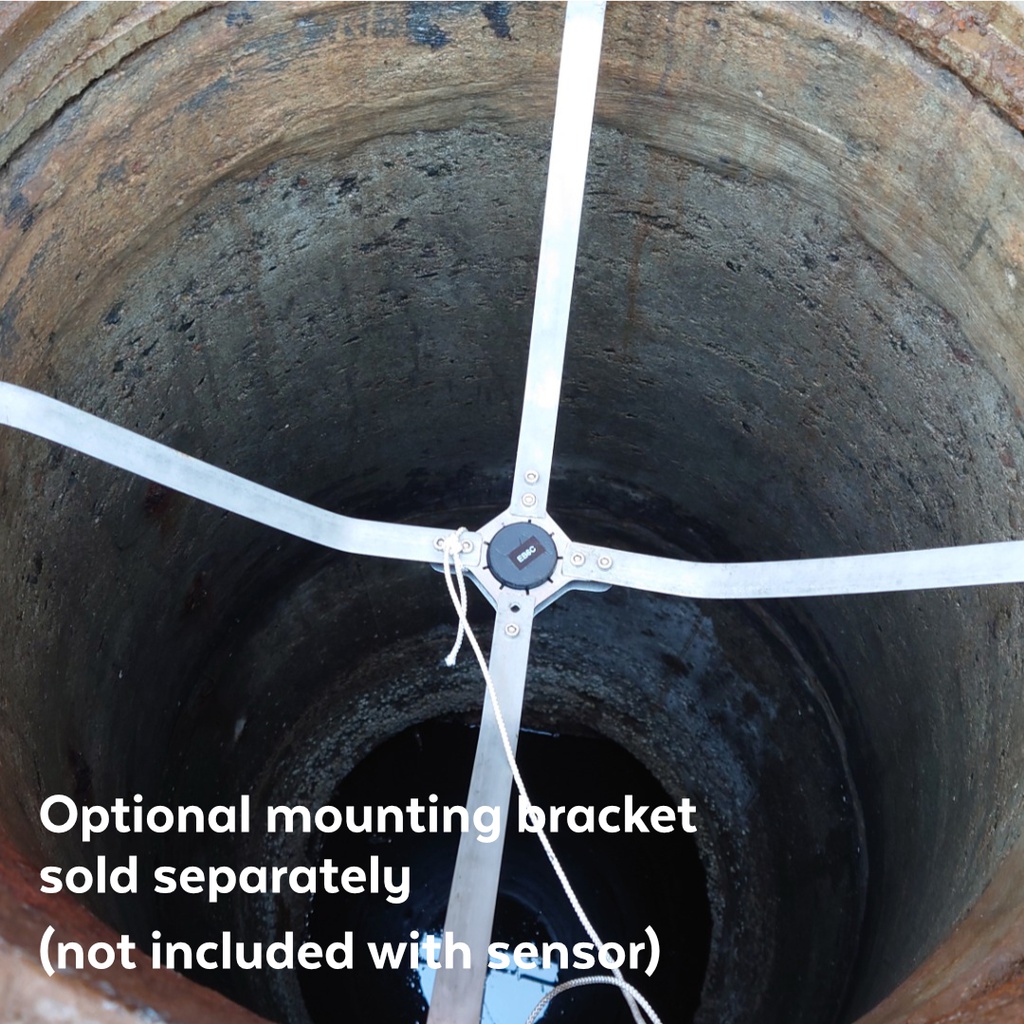

Puck Mounting Plates can be purchased separately.
| Application | |
|---|---|
| Application | Parking space monitoring, Filling level, Waste management, Distance measurements, Occupancy, Seat monitoring, Septic Tanks |
| Benefits | |
| Benefits | No maintenance (10 years), Long-range (2 km), Sturdy & waterproof, High accuracy, Location-aware, Built-in data memory |
| In/Outdoor usage | Indoor & Outdoor |
| Features | |
| Sensor | Radar 60 GHz, Temperature, Geolocation |
| Accessories | Mounting kits, Cloud Positioning Service |
| Configuration | LoRaWAN OTAA, NFC |
| Geopositioning | WiFi |
| Connectivity data | |
| Frequency | US (915 MHz) or EU868 - Europe 863-870 MHz |
| Protocols / Connectivity | LoRaWAN, NFC |
| LoRaWAN version | V 1.0.4 |
| LoRaWAN class | Class A |
| Sensor data | |
| Radar beam | Standard lens: +/- 60° beam (30 mm height) or Narrow lens: +/- 30° beam (45 mm height) |
| Temperature accuracy | ± 2 °C/ 3.6 °F @ 0-30 °C/32-86°F |
| Sensor circuit | Acconeer A111 |
| Radar frequency | 60 GHz |
| Radar range | 0.2 - 6.8 m |
| Radar accuracy | cm |
| Power supply | |
| Powered by | Battery, Lithium Thionyl Chloride battery, Replaceable battery, 2.1 Ah |
| Mechanical data | |
| Weight (g) | 38 (Standard 60° lens), 43 (Narrow 30° lens) |
| Height (mm) | 30 (Standard 60° lens), 45 (Narrow 30° lens) |
| Diameter (mm) | 45 |
| Internal | |
| Manufacturer | Sensative |
| Country of origin | Poland |
