STRIPS MS +DRIP OIL FOR SMART MACHINE ROOMS

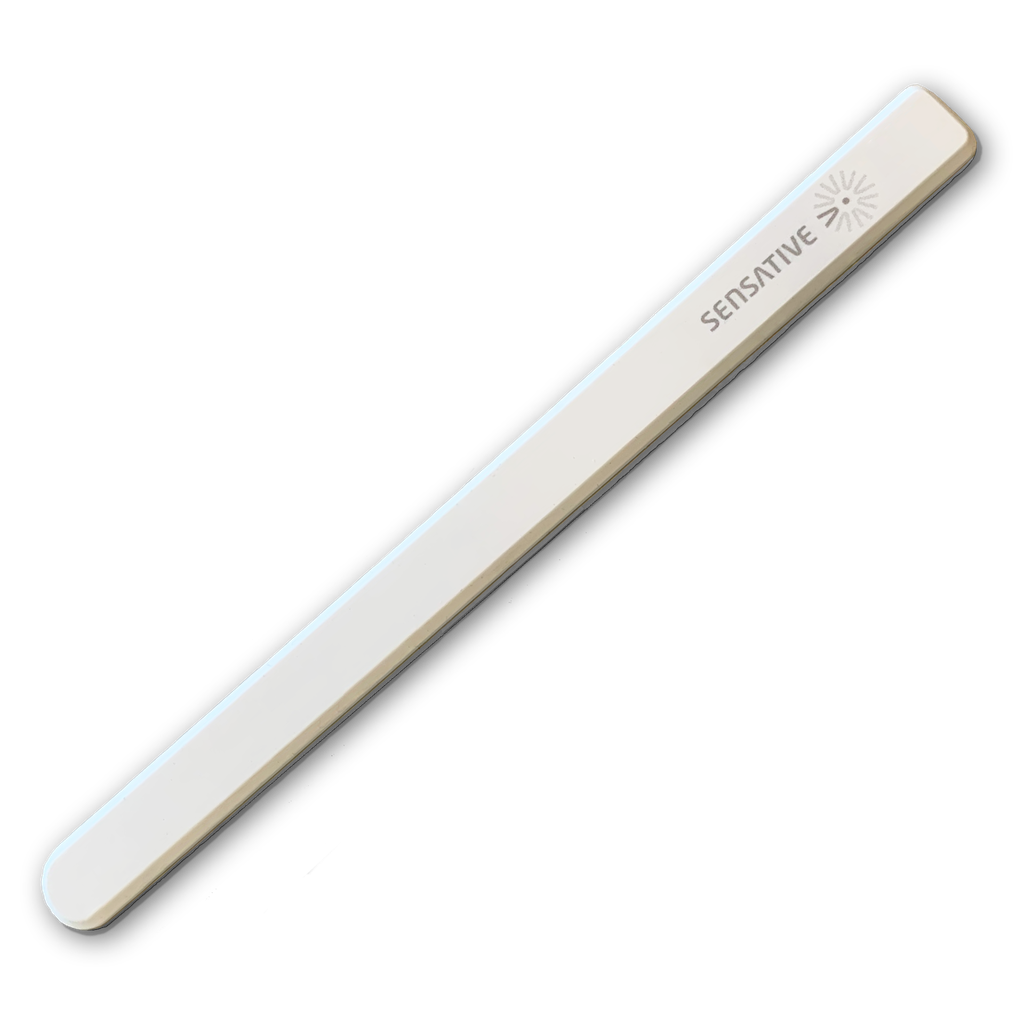

MS +Drip Oil is an ultra-thin (4mm/0.16in) and wireless multi-sensor designed for LoRaWAN. It features water and oil leak detection, making it perfect for smart IoT applications such as heavy machinery, transmission, and hydraulics monitoring.

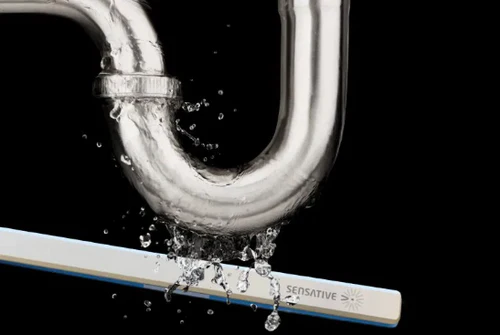

In case of a leakage, MS +Drip Oil immediately differentiates whether it is a water or oil leak and sends an appropriate alarm, giving early indications of potential machine breakdowns. Its slim and robust design makes it convenient to mount in small spaces or on pipes, allowing it to catch the first few drops of water or oil. It has a battery life of up to 10 years, making it a reliable and low-maintenance solution.
Benefits:
- Blend-in design (4mm)
- No maintenance (10 years)
- Long-range (10 km)
- Simple installation & mounting
- Low-lifecycle cost (multi-sensor, multi-purpose)
| Application | |
|---|---|
| Application | Water leak detection, Oil leak detection |
| Benefits | |
| Benefits | Blend-in design, No maintenance (10 years), Long-range (10 km), Simple installation & mounting, Low-lifecycle cost (multi-purpose multi-sensor) |
| In/Outdoor usage | indoor & sheltered outdoor |
| Features | |
| Sensor | Oil leak, Temperature, Water leak, Open/Close |
| Firmware update over the air (FOTA) | No |
| Connectivity data | |
| Frequency | EU868 - Europe 863-870 MHz or US915 - US 902 - 928 MHz or AU915 - Australia 915 - 928 MHz or AS923-1 - Asia 902 - 928 MHz or IN865 - India |
| Protocols / Connectivity | LoRaWAN |
| LoRaWAN version | V 1.0.4 |
| LoRaWAN class | Class A |
| Antenna | Integrated |
| Sensor data | |
| Temperature accuracy | ± 1 °C/ 1.8 °F @ 0-30 °C/32-86°F |
| Sensor type | Magnetic contact |
| Power supply | |
| Powered by | Battery, Built-in battery (LiMn02), 1,4 Wh (480 mA @ 3V), Non rechargeable battery |
| Mechanical data | |
| Weight (g) | 11 |
| Width (mm) | 15 |
| Height (mm) | 4 |
| More information | |
| Manual URL | https://public.yggio.net/docs/lorawan-sensors/strips-multi-sensor/#strips-ms-oil |
| Battery calculator | https://sensative.com/sensors/strips-lora-sensors/sensative-strips-lora-battery-calculator/ |
| Payload decoder | https://sensative.com/sensors/strips-lora-sensors/sensative-strips-lora-ms-resource-center/ |
| Internal | |
| Yggio decoder | Strips MS +Drip +Guard |
| Fortnox Article number | 130100X_194 |
| Manufacturer | Sensative |
| Country of origin | Poland |
| Packaging | Installer |
| Length (mm) | 195 |
| Box Width (mm) | 38 |
| Box Length (mm) | 206 |
| Box Thickness (mm) | 17 |
| Box Weight empty (g) | 10 |
| Box Weight with content (g) | 32 |
